65kg vertical balancing machine-1

Vertical balancing machine

Home >  Products >  Vertical balancing machine

ALL PRODUCTS

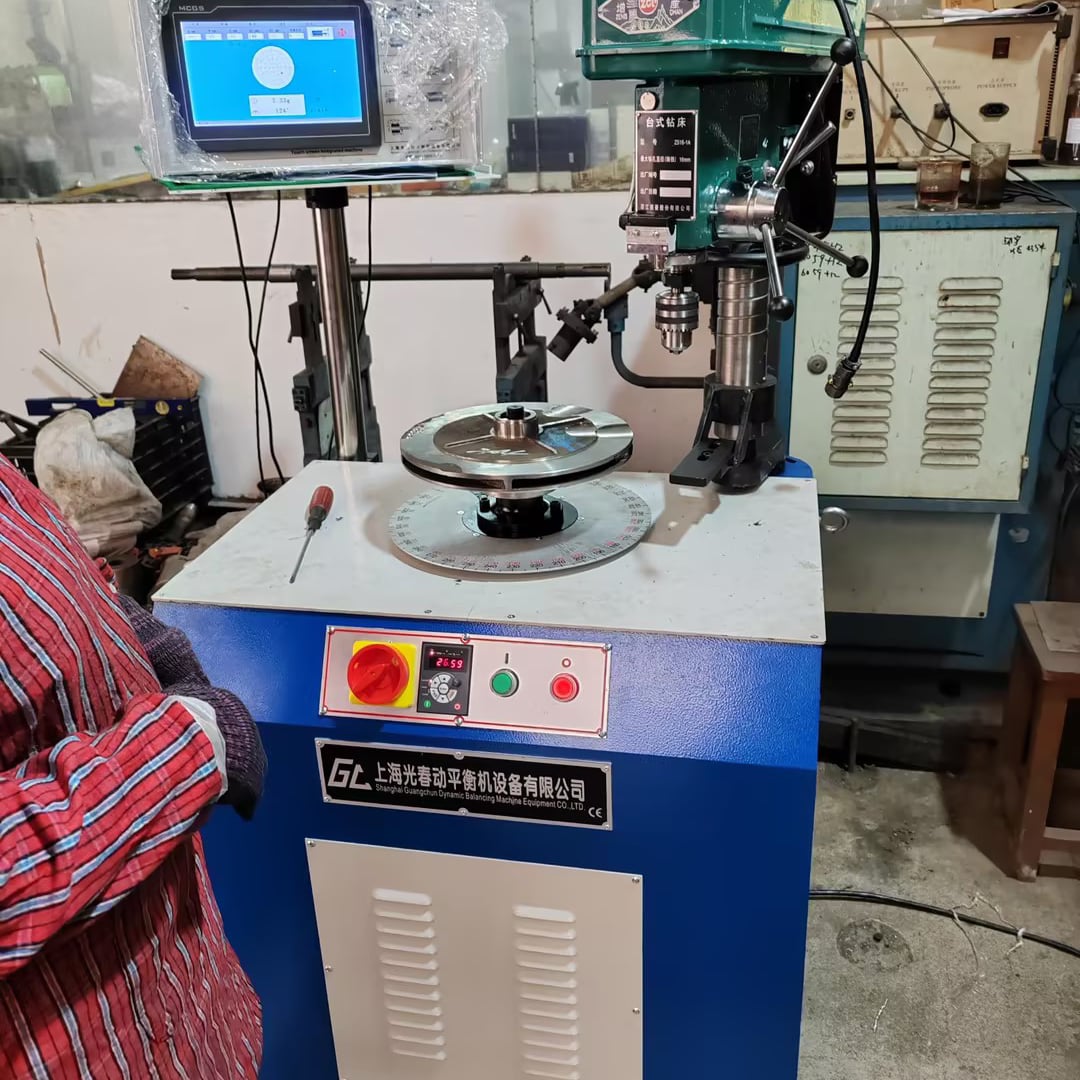

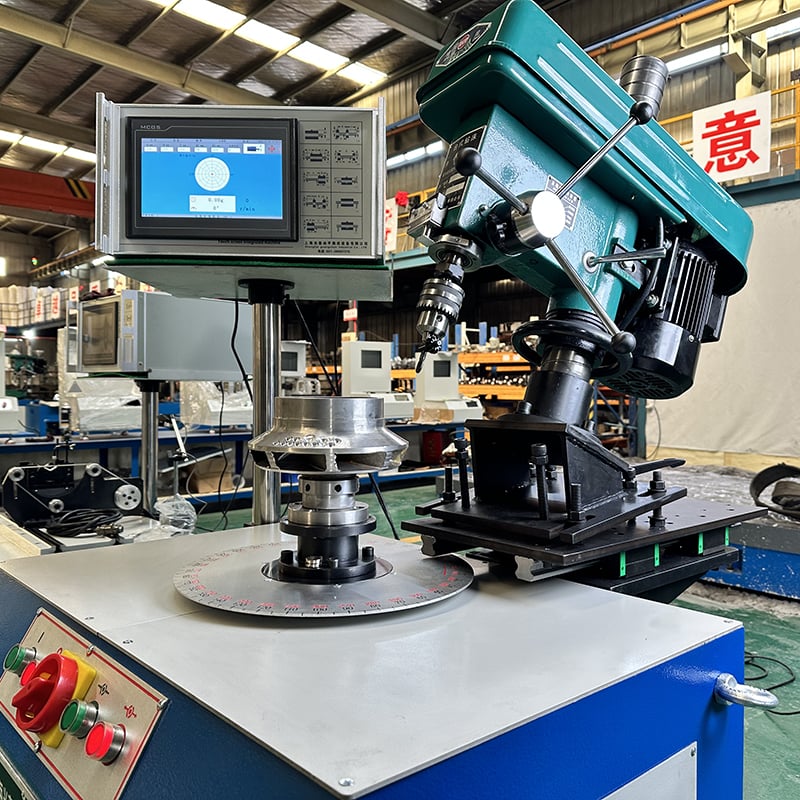

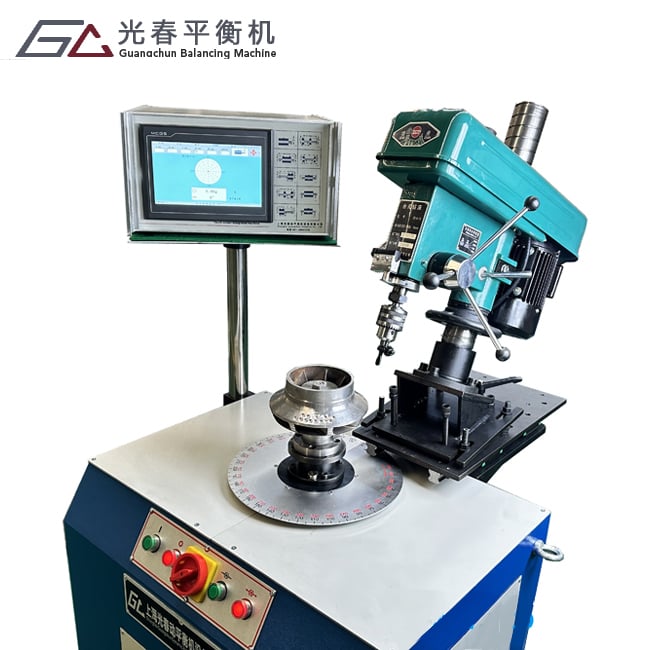

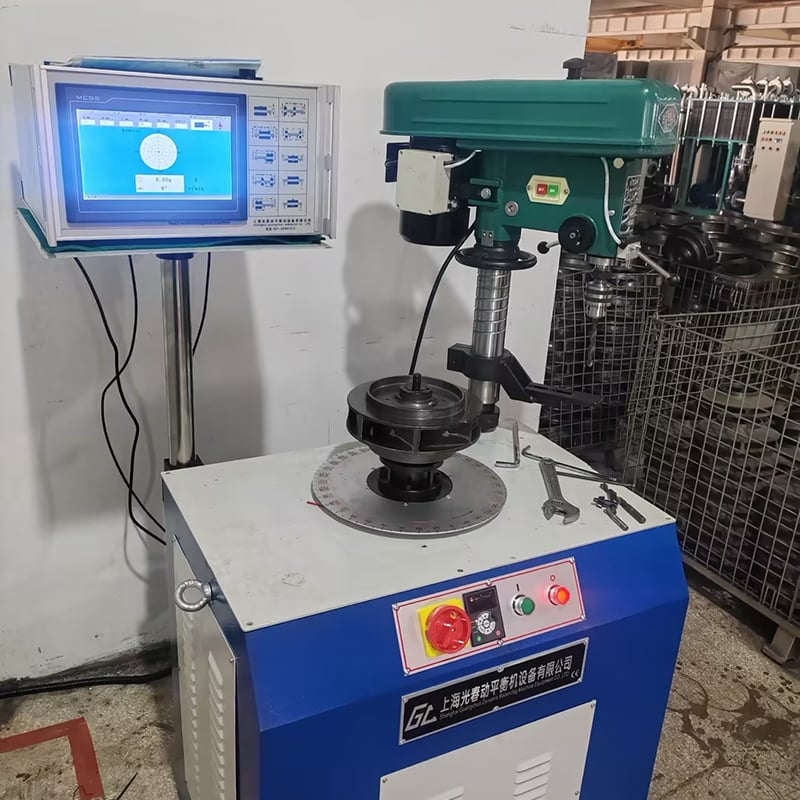

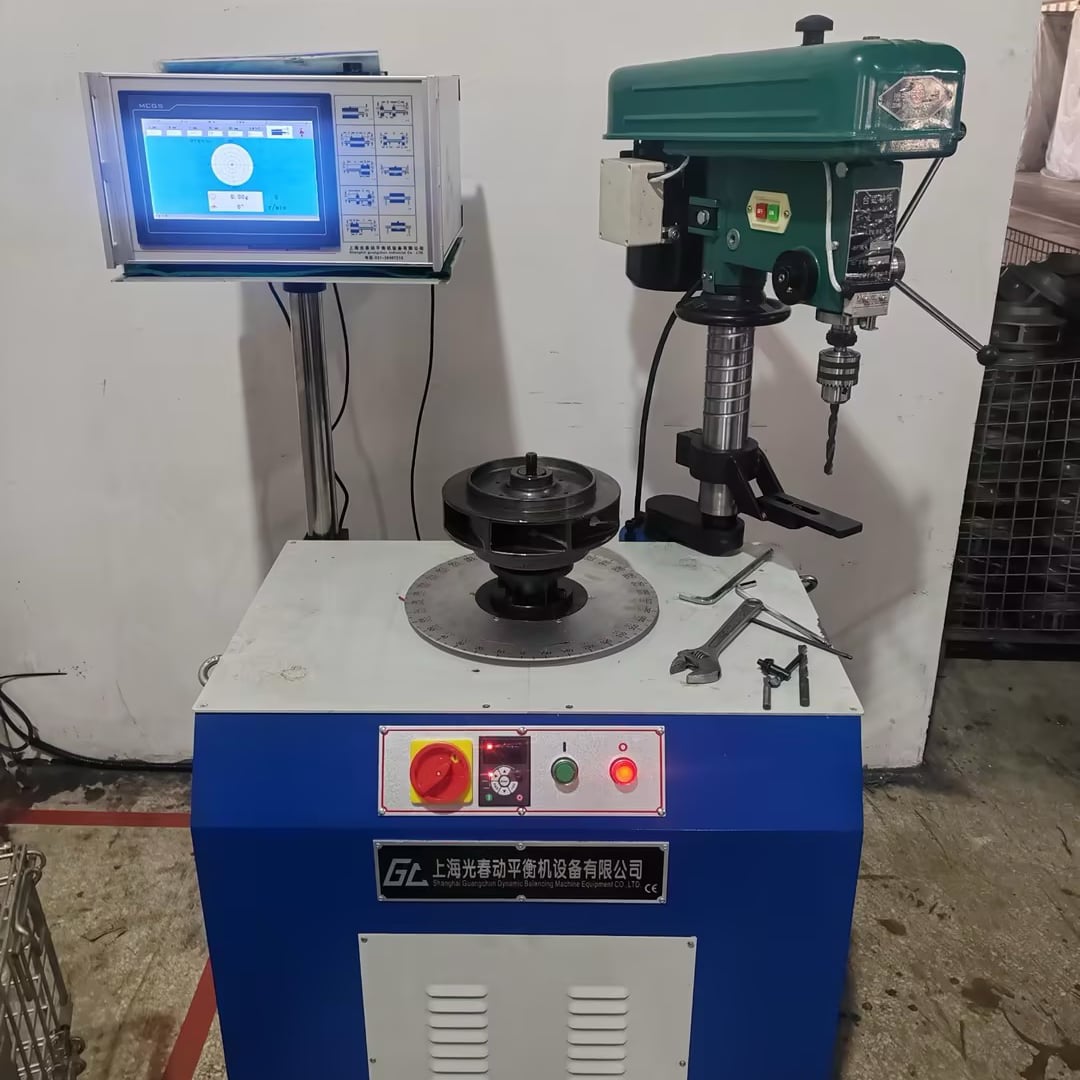

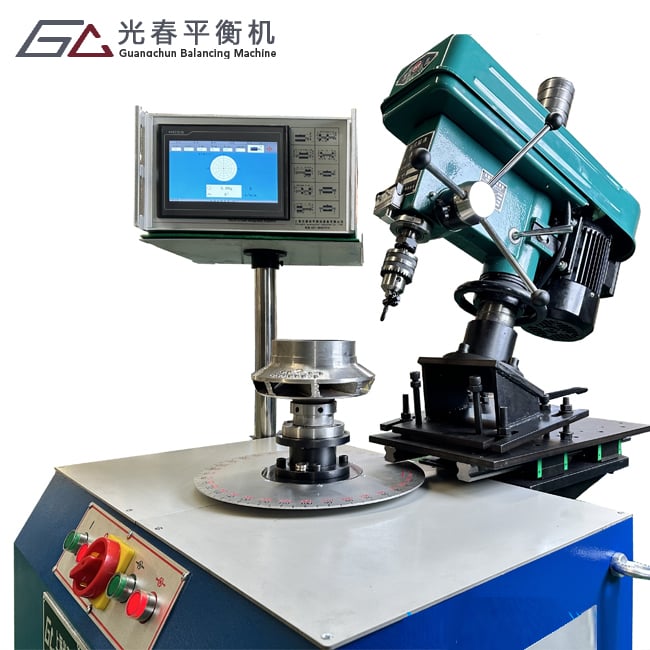

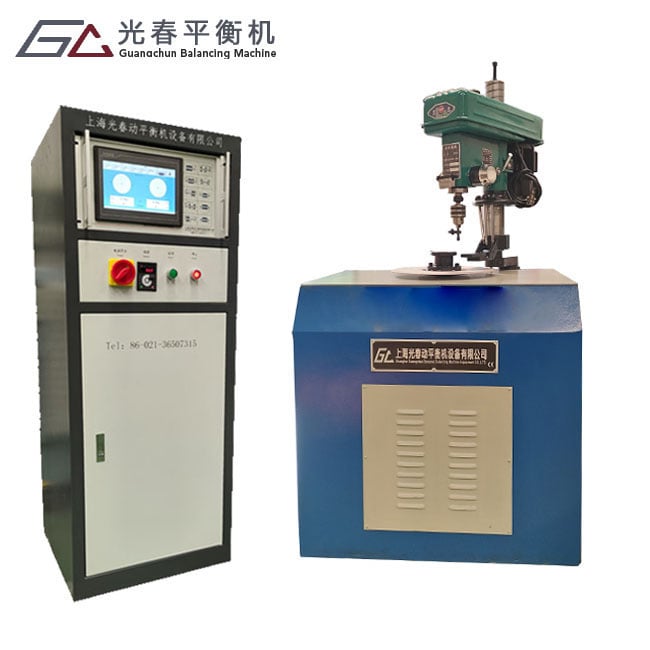

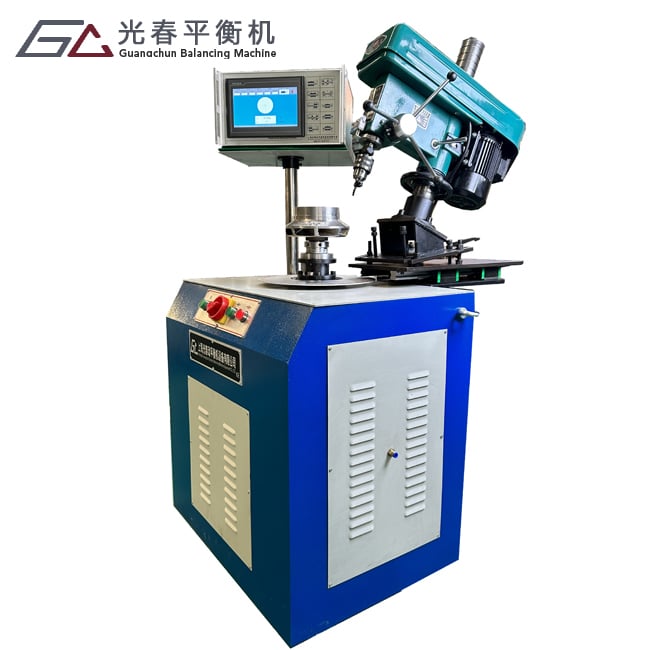

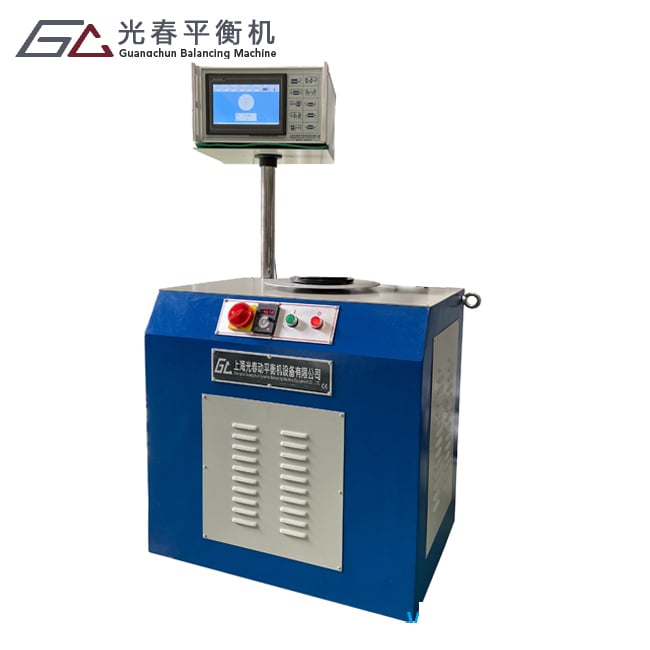

16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine
16/42/65Kg Vertical balancing machine

16/42/65Kg Vertical balancing machine

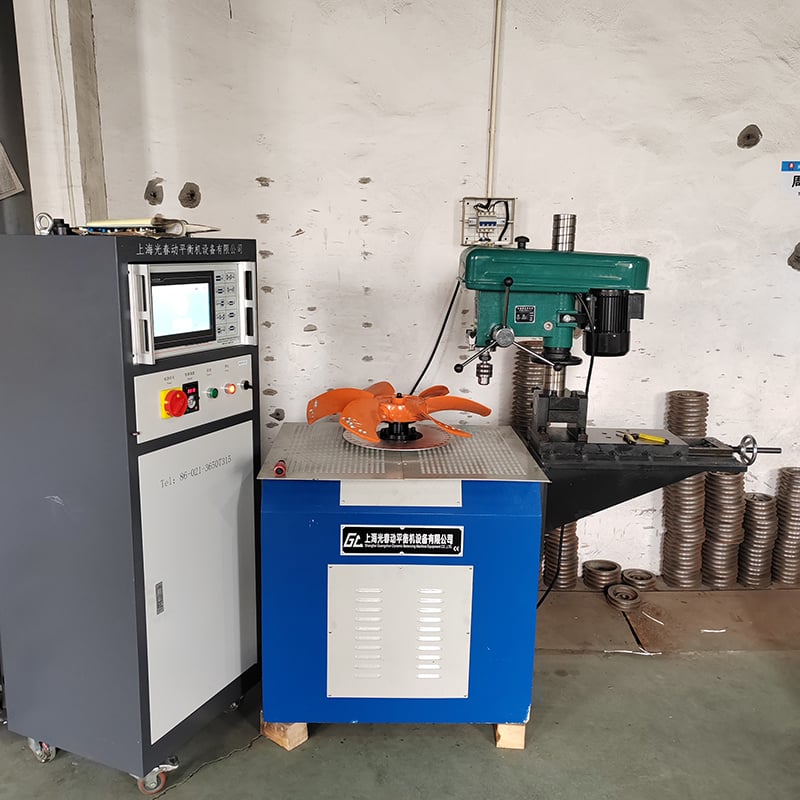

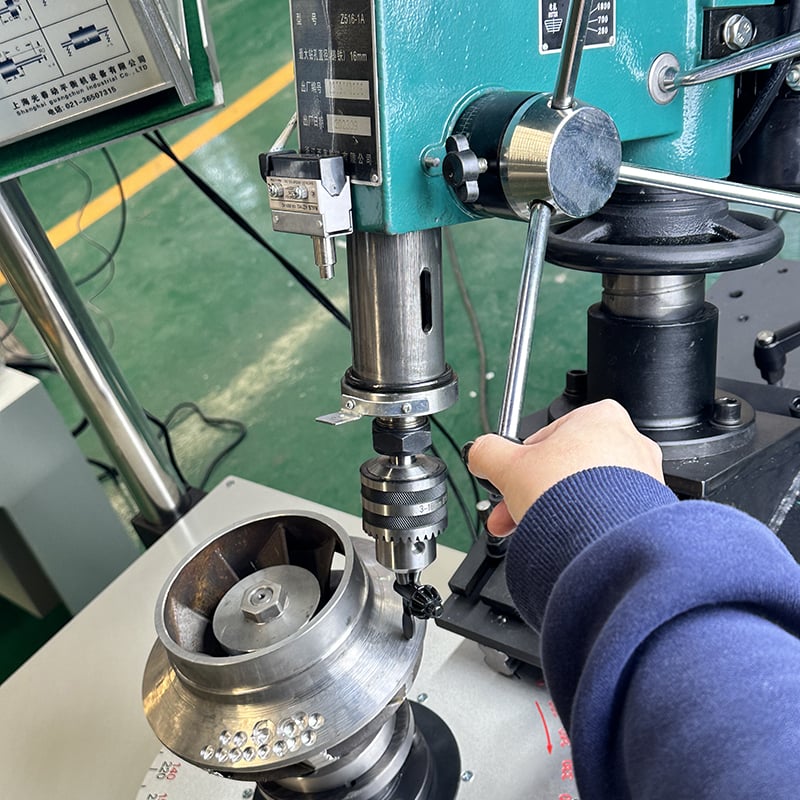

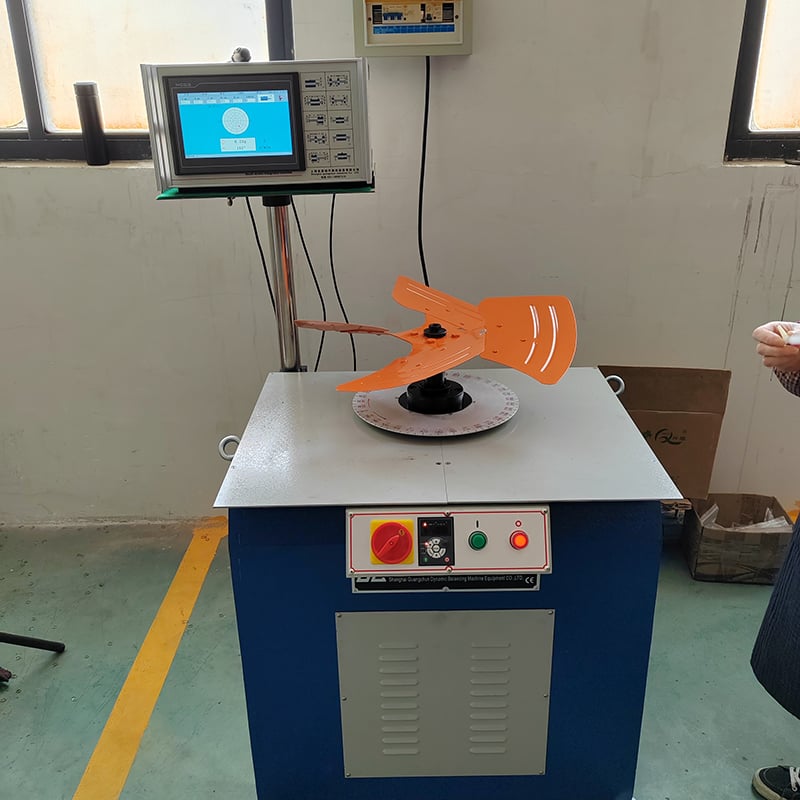

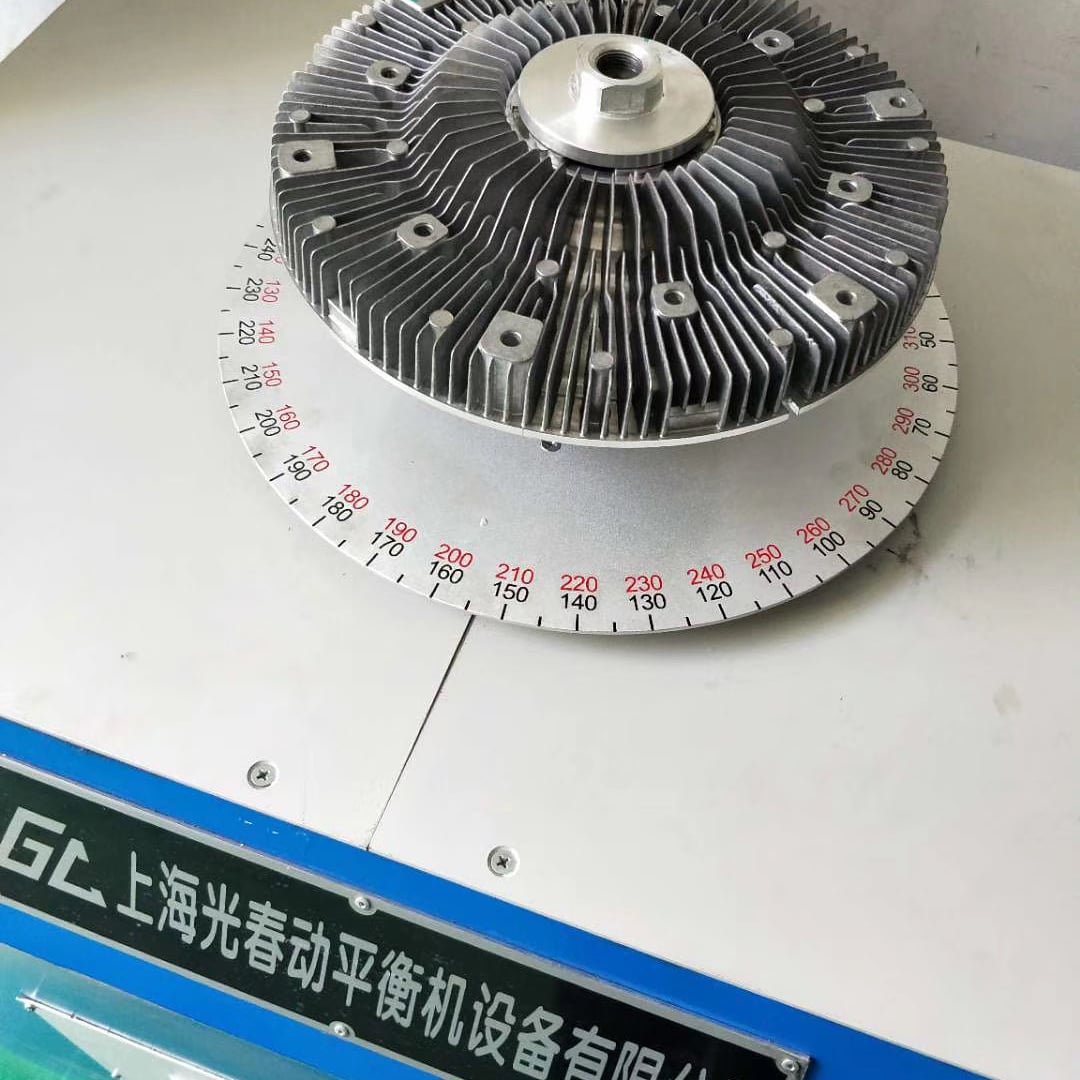

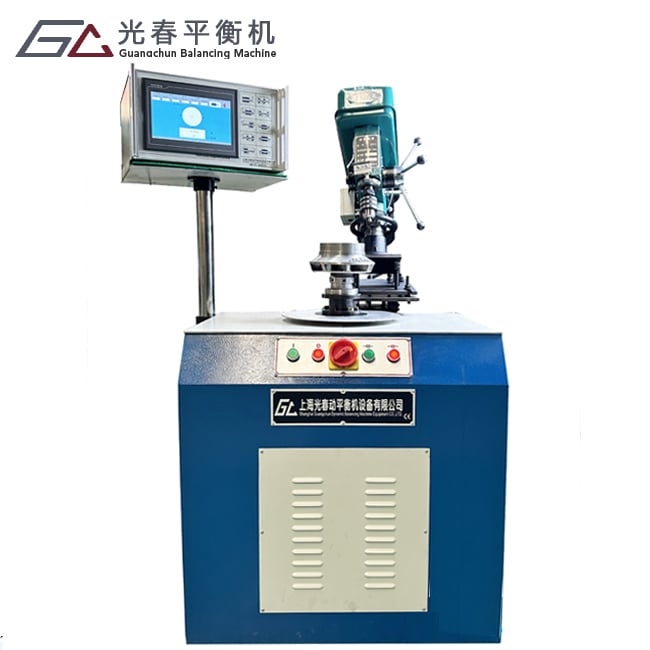

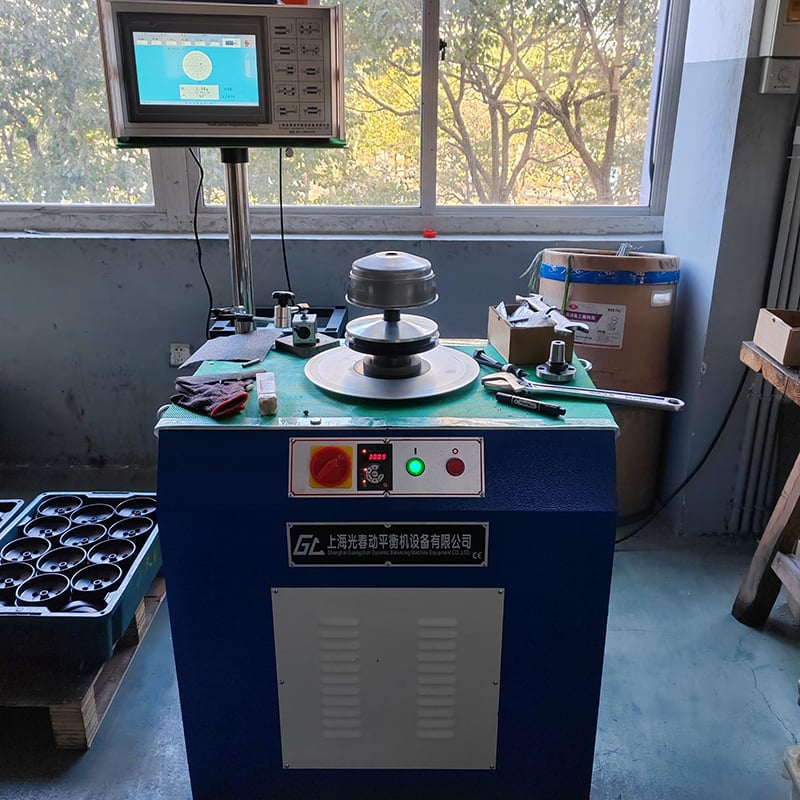

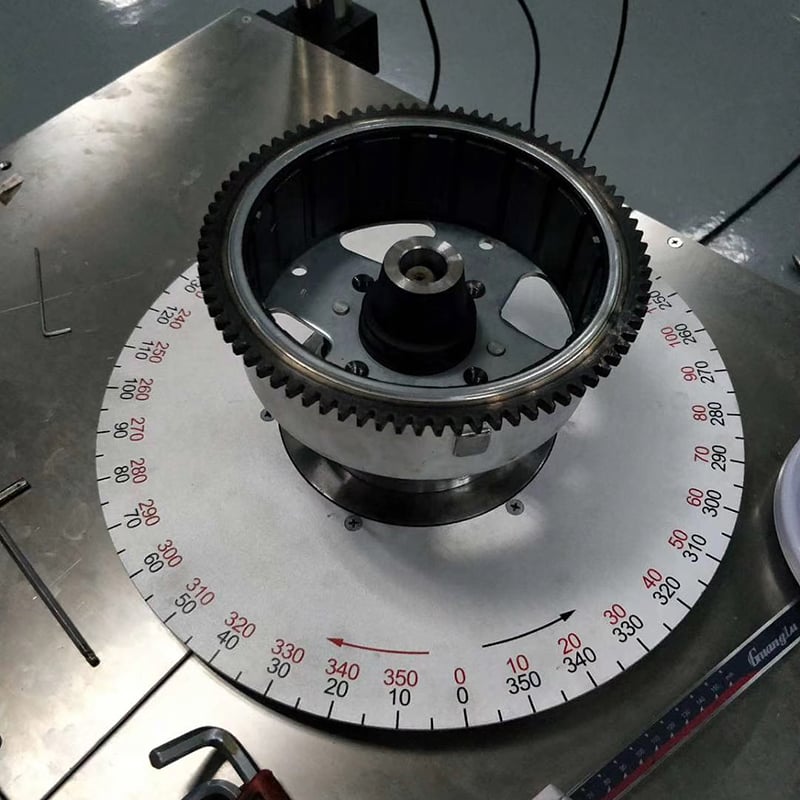

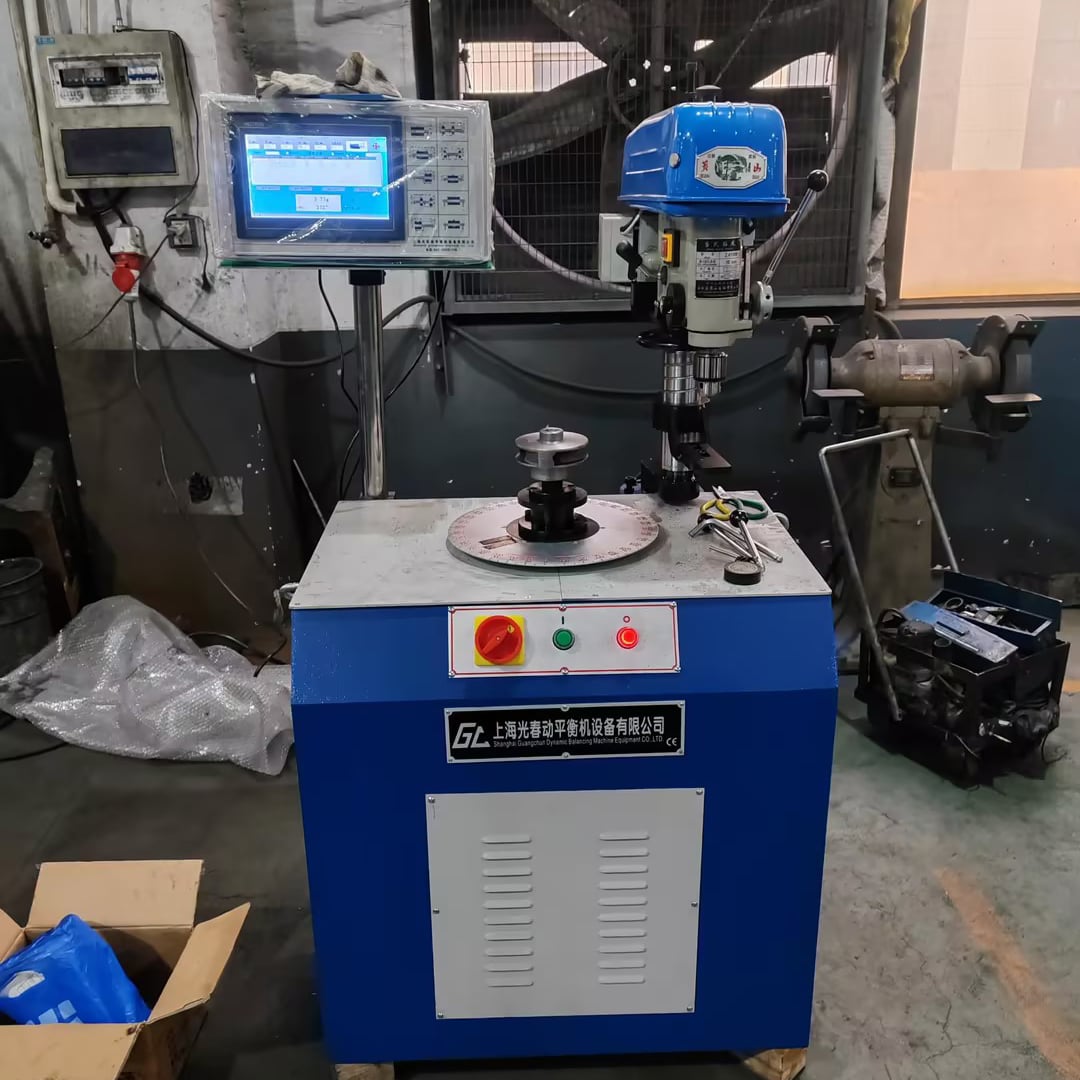

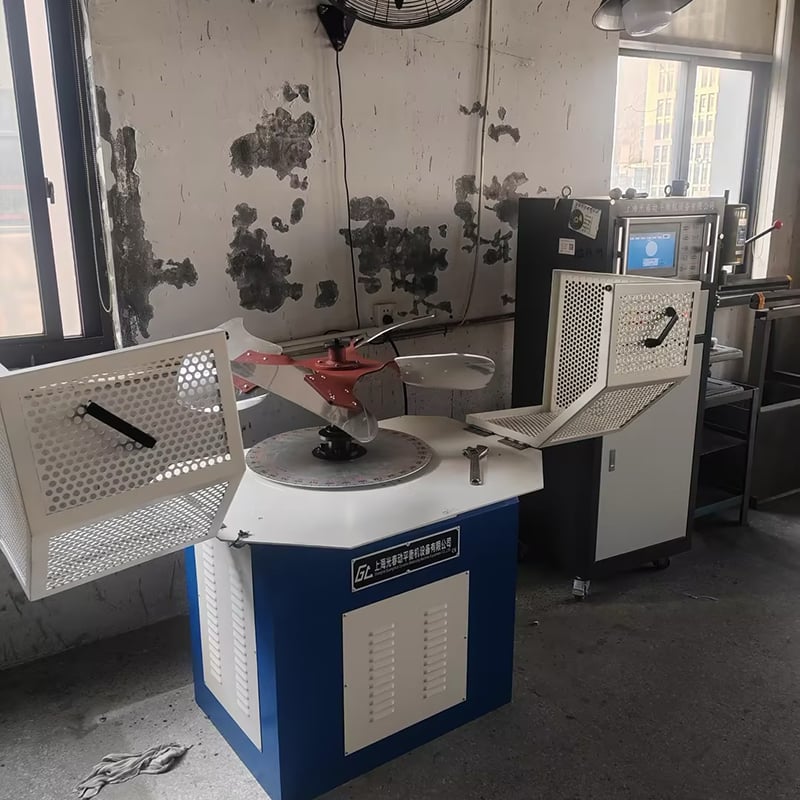

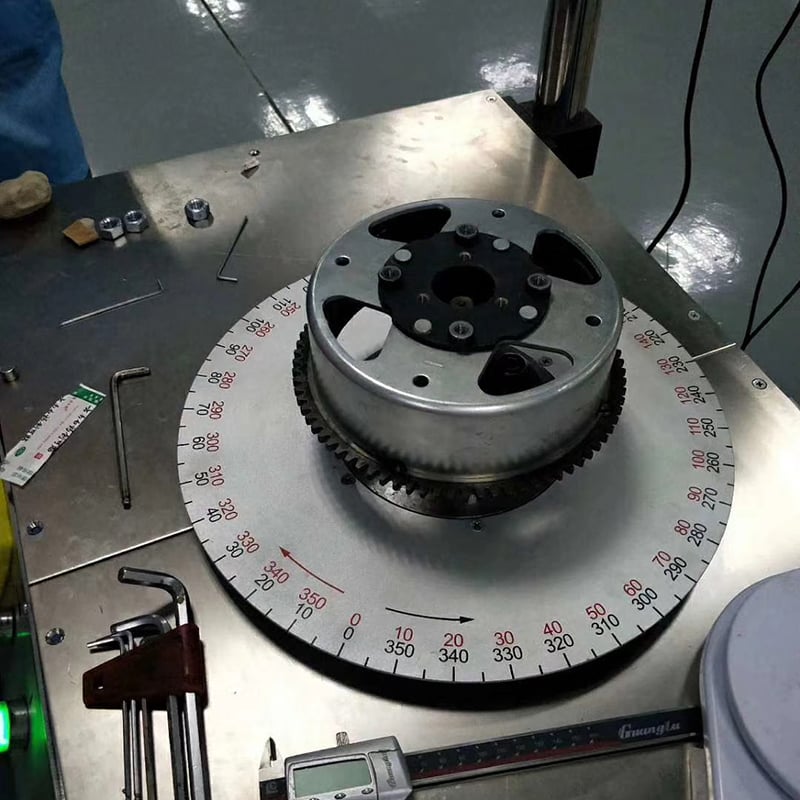

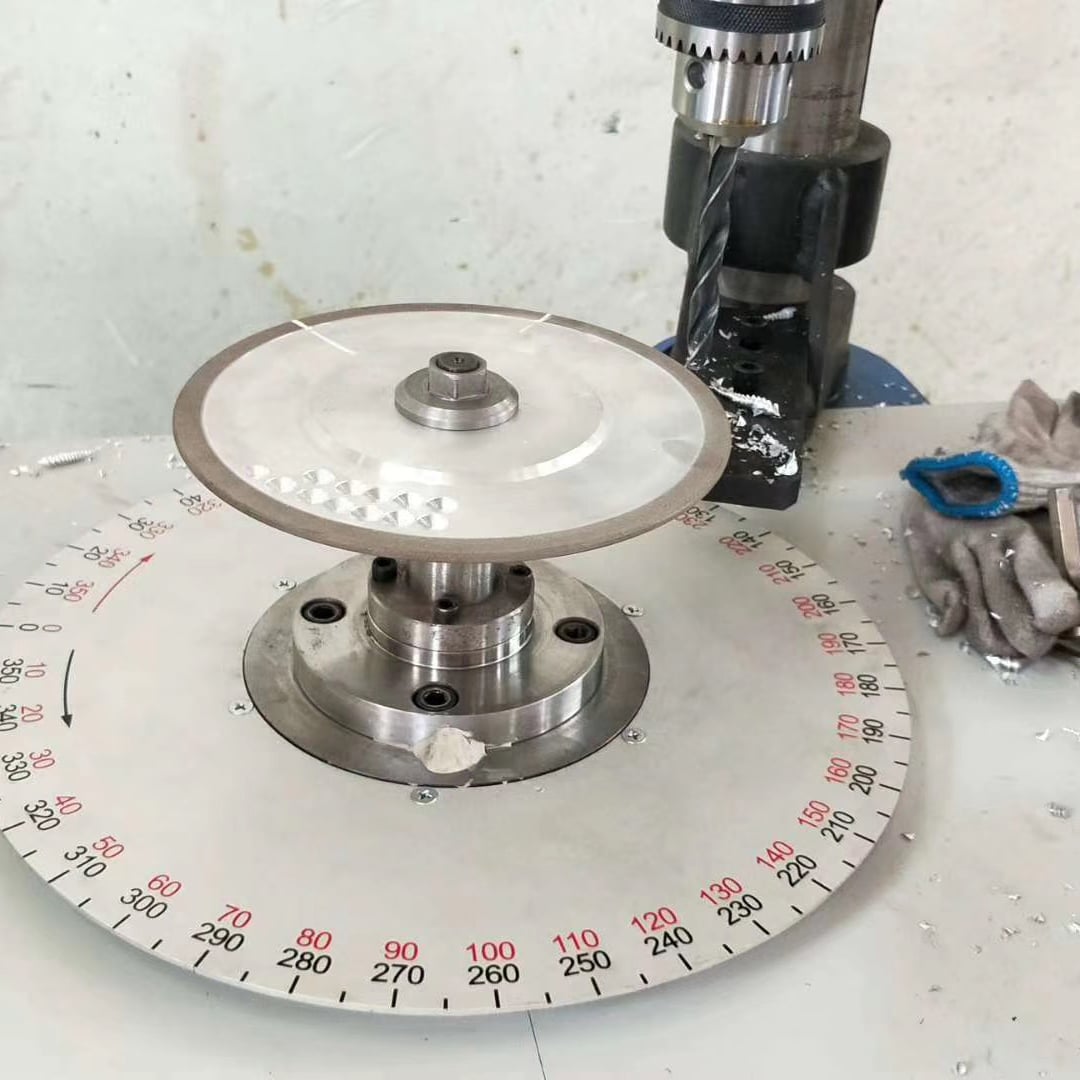

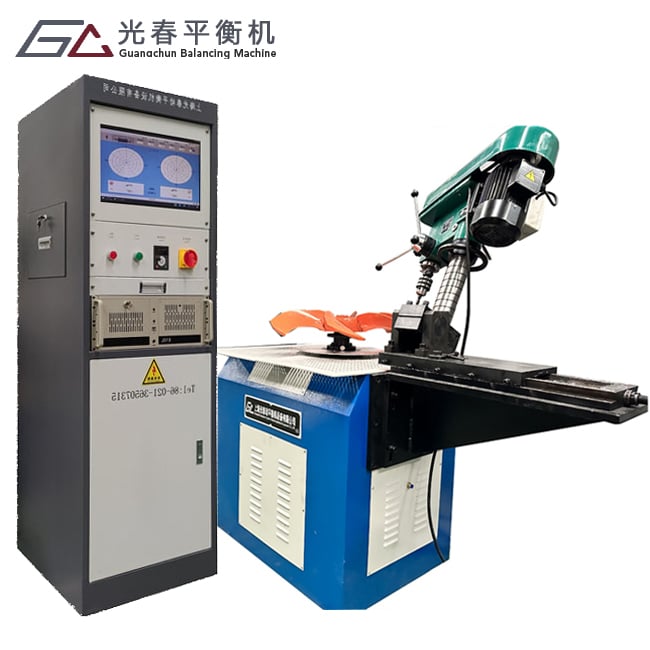

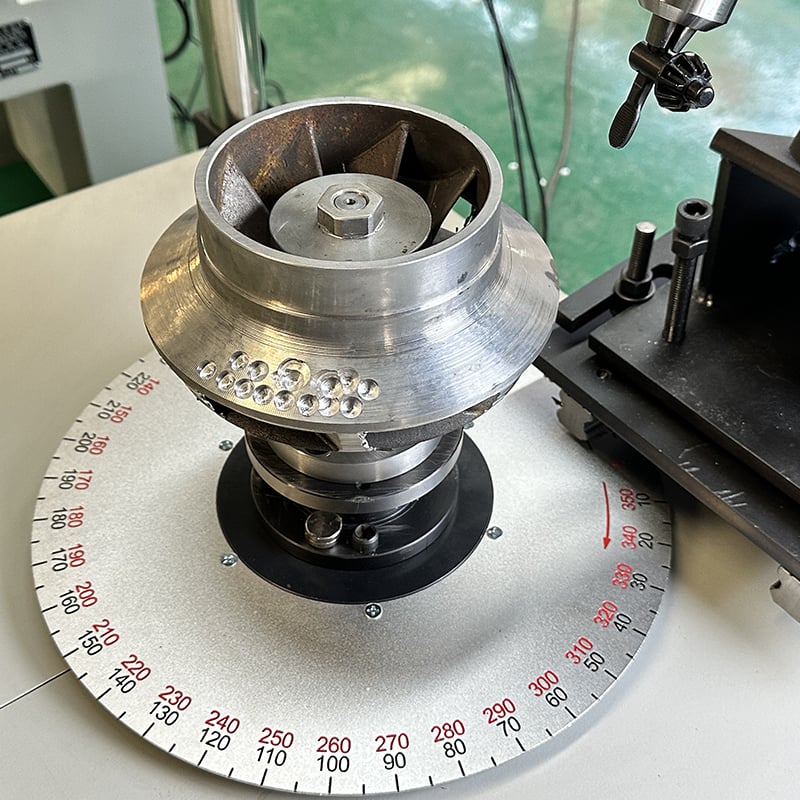

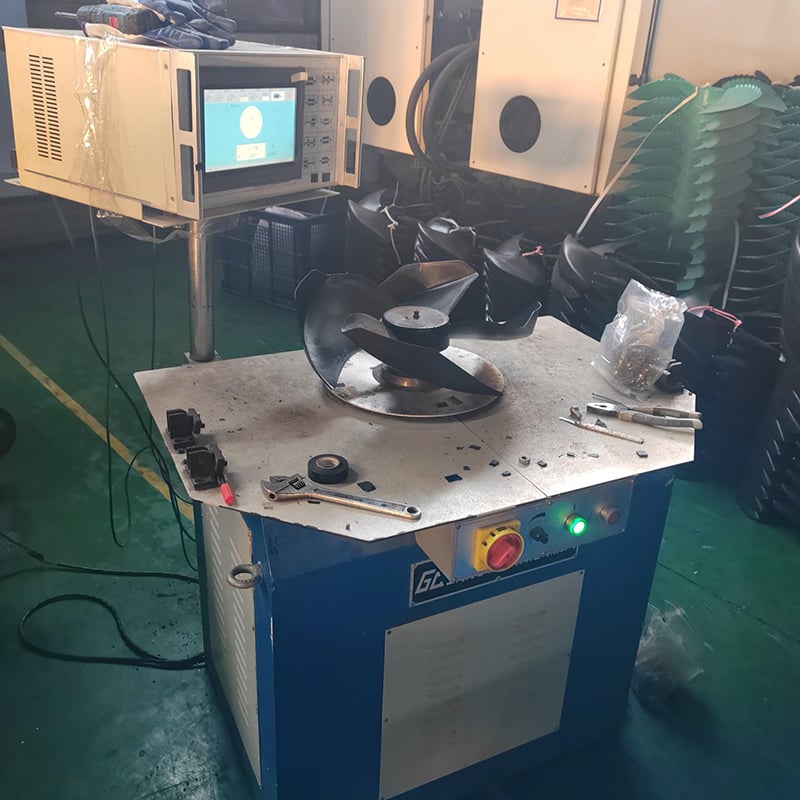

It is mainly applied to balance testing of various rotors such as fan blades, water pump impellers, flywheels, grinding wheels, diamond saw blades, chucks, brakes, etc., and can be equipped with vertical drilling machines for weight removal according to customer requirements.

Inquiry
  • Technical Parameter
  • Video
  • Inquiry
Technical Parameter

Specification

YLD-16

YLD-42

YLD-65

Max Weight of Workpiece (kg)

16

42

65

Max Diameter of Workpiece(mm)

φ800

φ800

φ800

Work piece height(mm)

160

160

160

Spindle speed（r/min）

900`

Variable frequency stepless speed regulation

Variable frequency stepless speed regulation

Motor Power（kw）

1.5

1.5

2.2

Min Achievable Residual Specific Unbalance (emar)

≤1g.mm/kg

≤1g.mm/kg

≤1g.mm/kg

Unbalance reduction ratio URR (%)

≥95%

≥95%

≥95%
