200kg vertical balancing machine-1

Vertical balancing machine

Home >  Products >  Vertical balancing machine

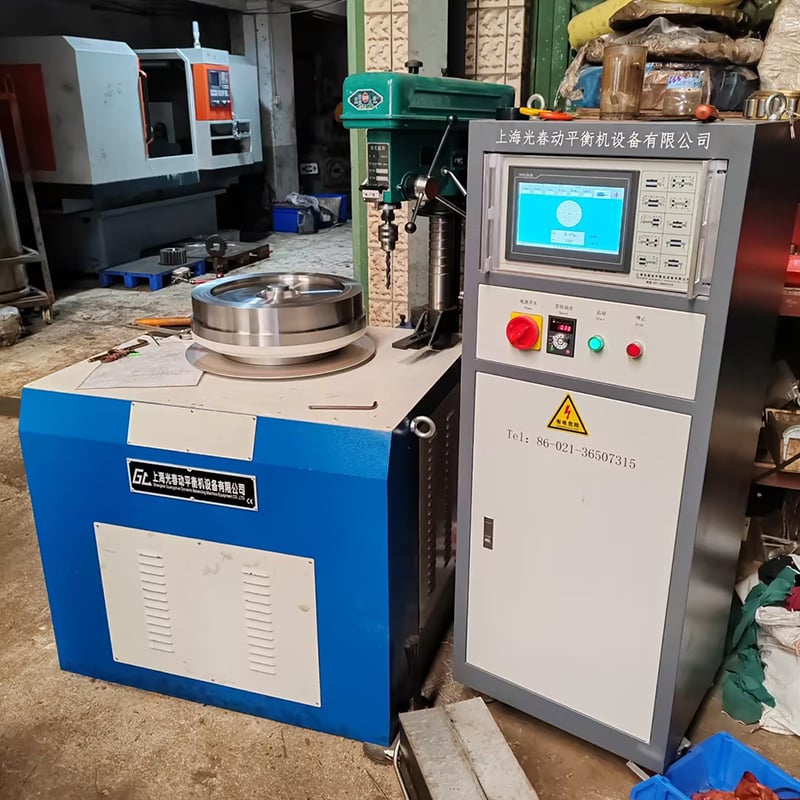

100/200Kg Vertical balancing machine

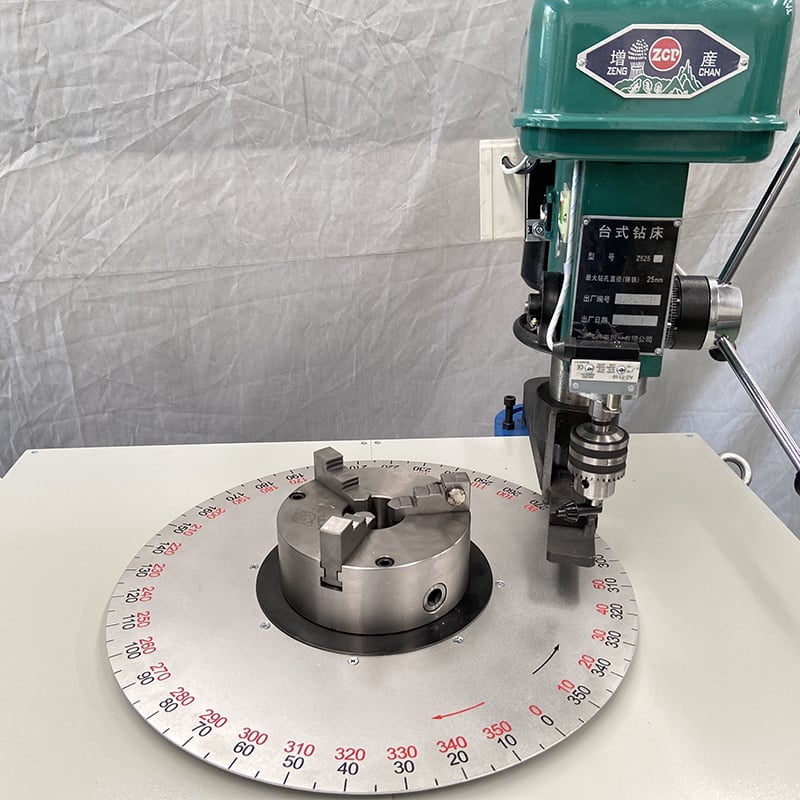

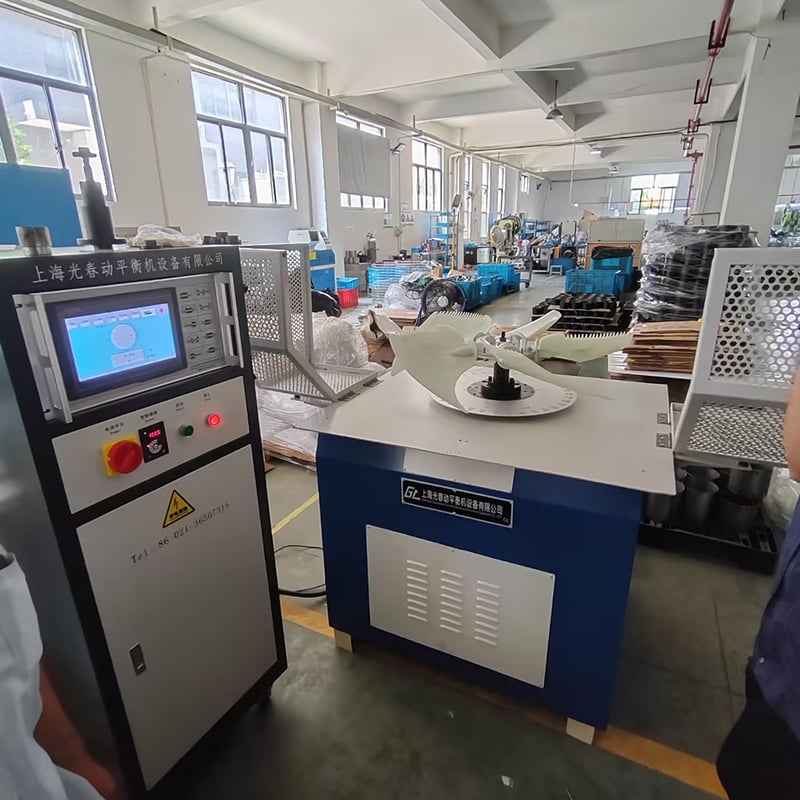

It is mainly applied to balance testing of various rotors such as fan blades, water pump impellers, flywheels, grinding wheels, diamond saw blades, chucks, brakes, etc., and can be equipped with vertical drilling machines for weight removal according to customer requirements.

  • Technical Parameter
  • Video
  • Inquiry
Technical Parameter

Specification

YLD-100

YLD-200

Max Weight of Workpiece (kg)

100

200

Max Diameter of Workpiece(mm)

φ1000

No safety cover

φ1000

No safety cover



Work piece height(mm)

200

200

Spindle speedr/min

Variable frequency stepless

Speed regulation

Variable frequency stepless

Speed regulation

Motor Powerkw

4

5.5

Min Achievable Residual Specific Unbalance (emar)

1g.mm/kg

1g.mm/kg

Unbalance reduction ratio URR (%)

95%

95%
