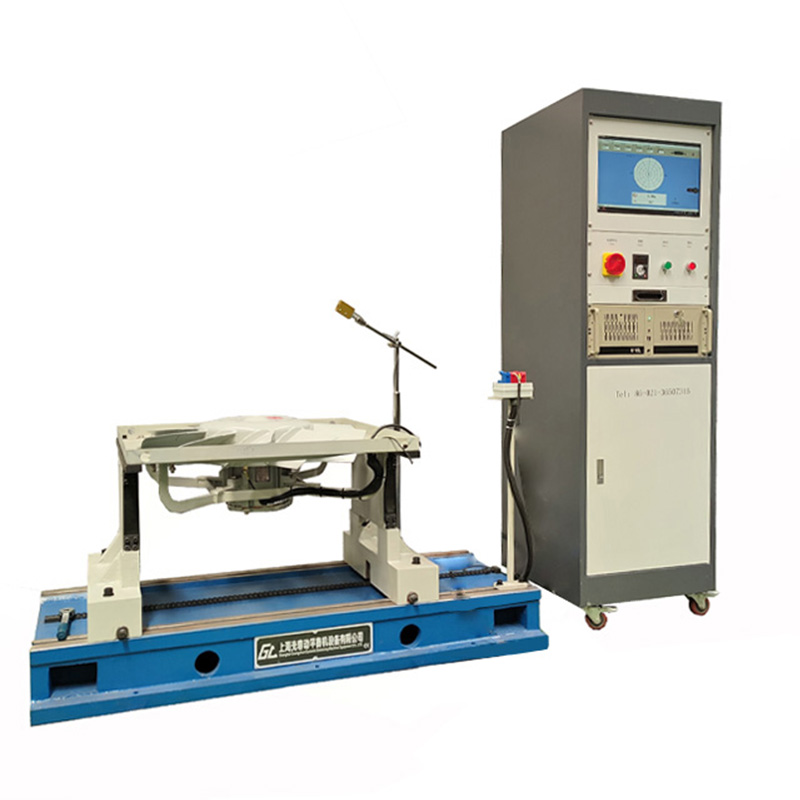

50/160Kg Self-driven balancing machine

It is mainly used for the overall balancing of workpieces such as external rotors, warm air blower and coil fans, taking full account of the balancing accuracy of the overall assembly, Eliminating the amount of unbalance mass caused by the manufacturing accuracy of bearings and other components and overall assembly errors. Improve the quality of our customers' products.

This machine adopts soft support pedestal system with high precision. Special fixtures can be customized for customers to make the overall balance more accurate.

  • Technical Parameter
  • Inquiry
Technical Parameter

Specification

RHZ-50

RHZ-160

Max Weight of Workpiece(kg)

50

160

Max Diameter of Workpiece(mm)



φ700

φ1000

Rotor Balance Speedr/min



1000-5000

1000-5000

Driving Mode

self-powered workpiece drive

self-powered workpiece drive

Min Achievable Residual Specific Unbalance (emar)per-surface

0.3g.mm/kg

0.3g.mm/kg

Unbalance reduction ratio URR (%)

90%

90%
