500kg universal joint balancing machine-1

Universal jiont balancing machine

Home >  Products >  Universal jiont balancing machine

ALL PRODUCTS

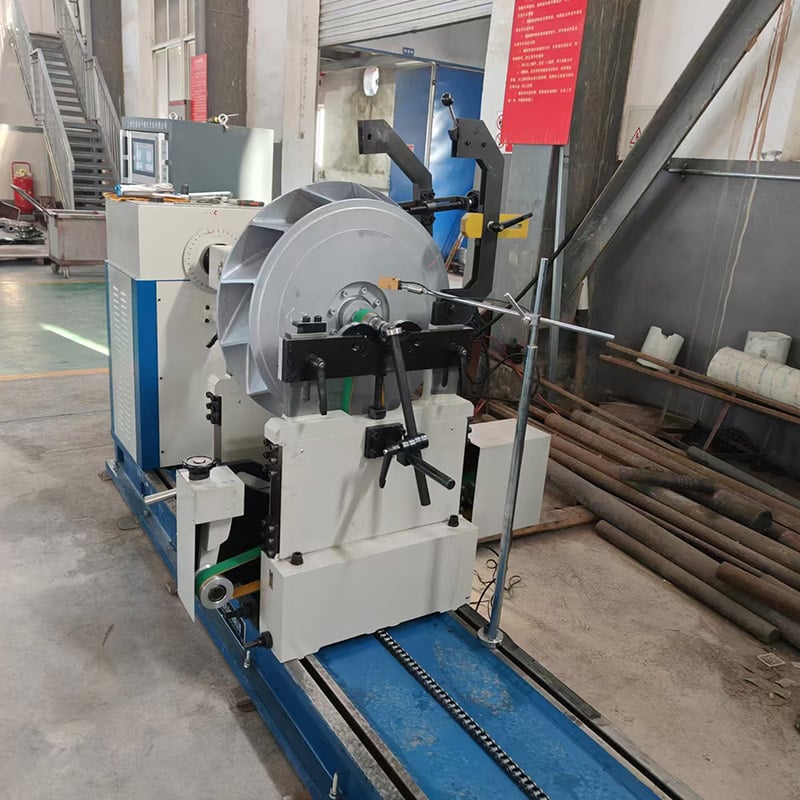

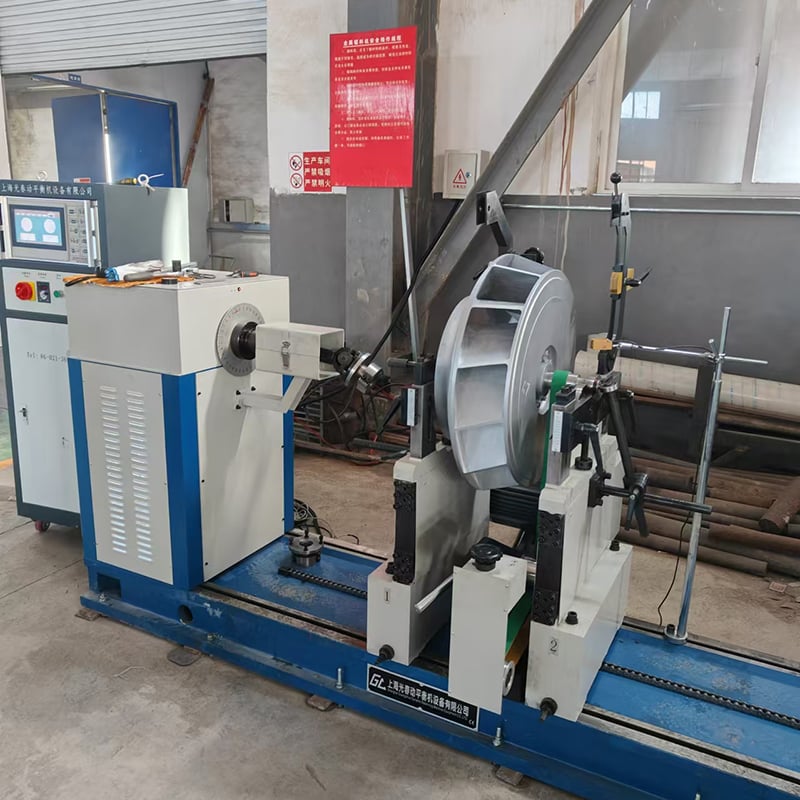

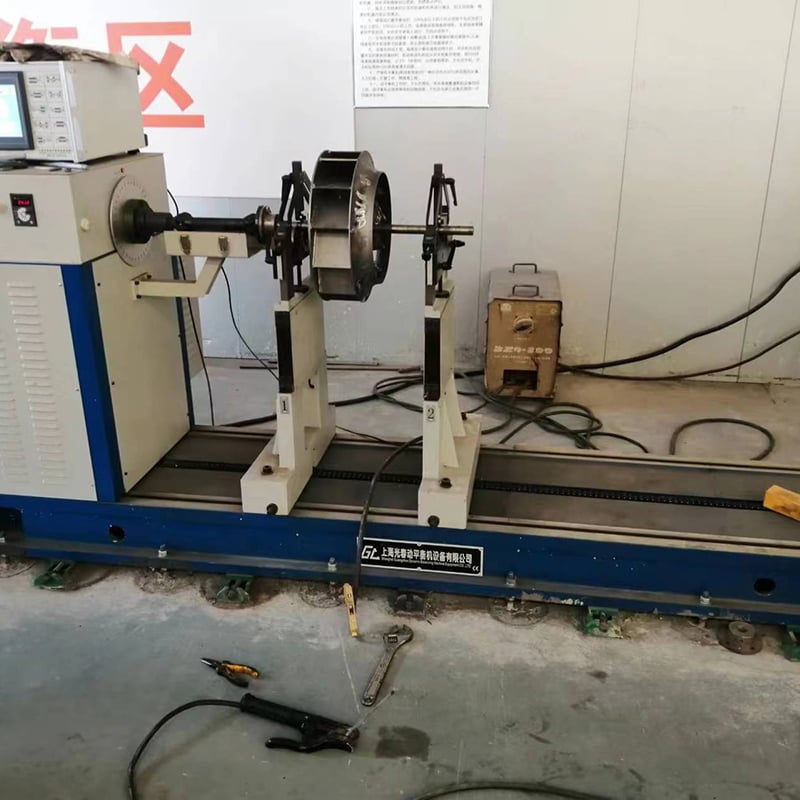

160/300/500Kg universal joint balancing machine
160/300/500Kg universal joint balancing machine
160/300/500Kg universal joint balancing machine
160/300/500Kg universal joint balancing machine
160/300/500Kg universal joint balancing machine
160/300/500Kg universal joint balancing machine
160/300/500Kg universal joint balancing machine
160/300/500Kg universal joint balancing machine

160/300/500Kg universal joint balancing machine

Apply to large and small motor rotor, blower impeller, centrifugal impeller, drying cylinder, and roller balance verification.

This machine adopts universal joint coupling transmission, infinitely variable speed regulation, with high driving power, high precision and convenient operation.

Inquiry
  • Technical Parameter
  • Inquiry
Technical Parameter
Specification YYW-160 YYW-300 YYW-500
Max Weight of Workpiece(kg) 160 300 500
Max Diameter of Workpiece(mm) φ1260 φ1260 φ1500
Min Distance Between Two Support Bearings(mm) 60 60 60
Bed Length(mm) 2700 2700 2700
Maximum distance between end face of universal coupling and Center Of right support(mm) 1700 1700 1700
Journal Diameter Range of Workpiece(mm) φ15-180Customization φ15-180Customization φ15-180Customization
Spindle speed(r/min) Variable frequency stepless speed regulation Variable frequency stepless speed regulation Variable frequency stepless speed regulation
Motor Power(kw) 3 3 4
Torque of Universal Joint Shaft (N.m) 60 60 60
Min Achievable Residual Specific Unbalance(emar) ≤0.5g.mm/kg ≤0.5g.mm/kg ≤0.5g.mm/kg
Unbalance reduction ratio URR (%) ≥95% ≥95% ≥95%
