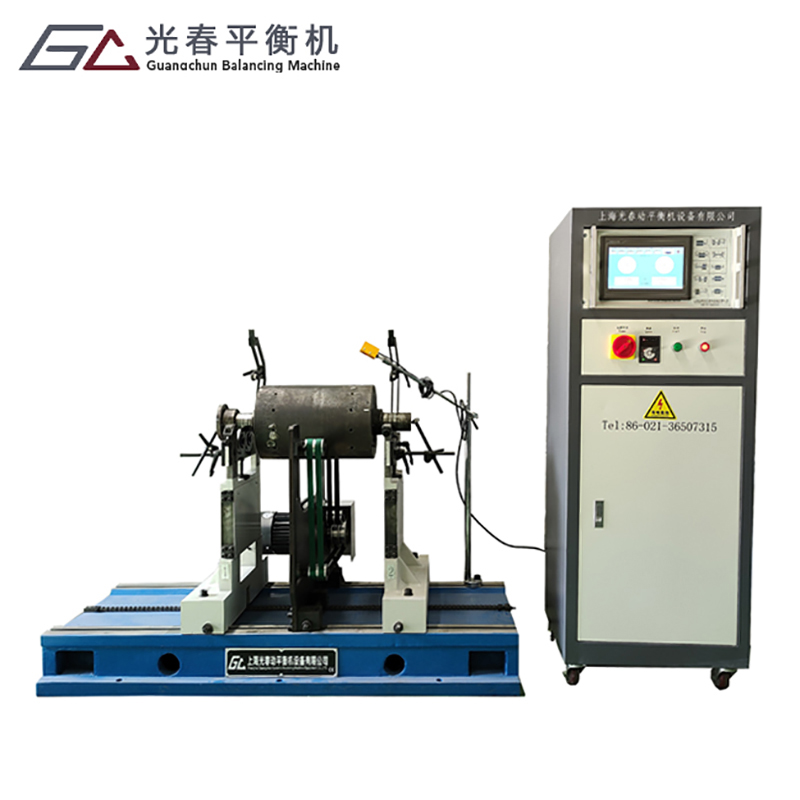

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

160/300/500Kg belt drive balancing machine

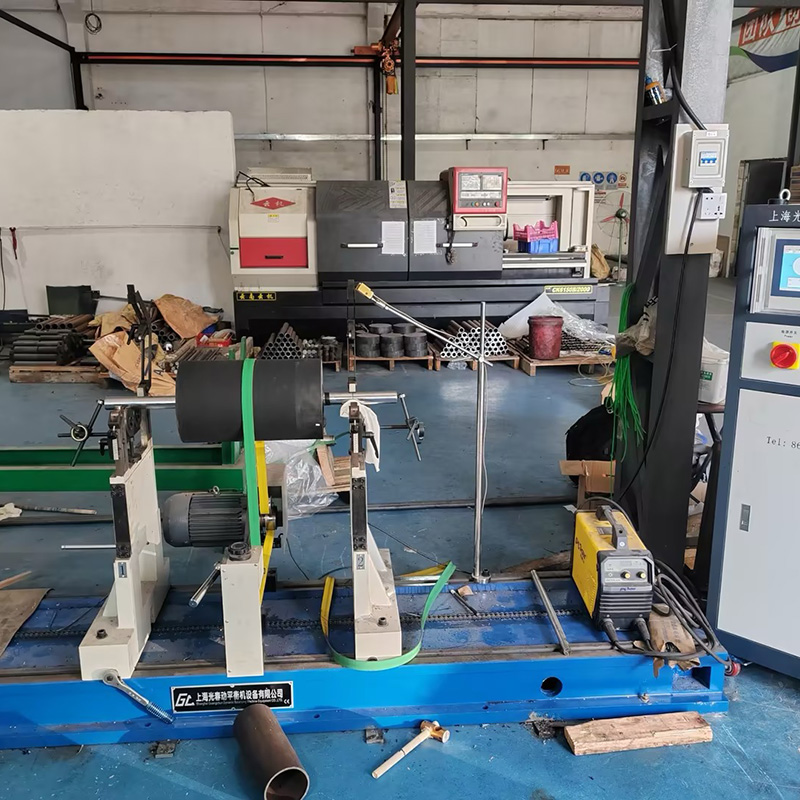

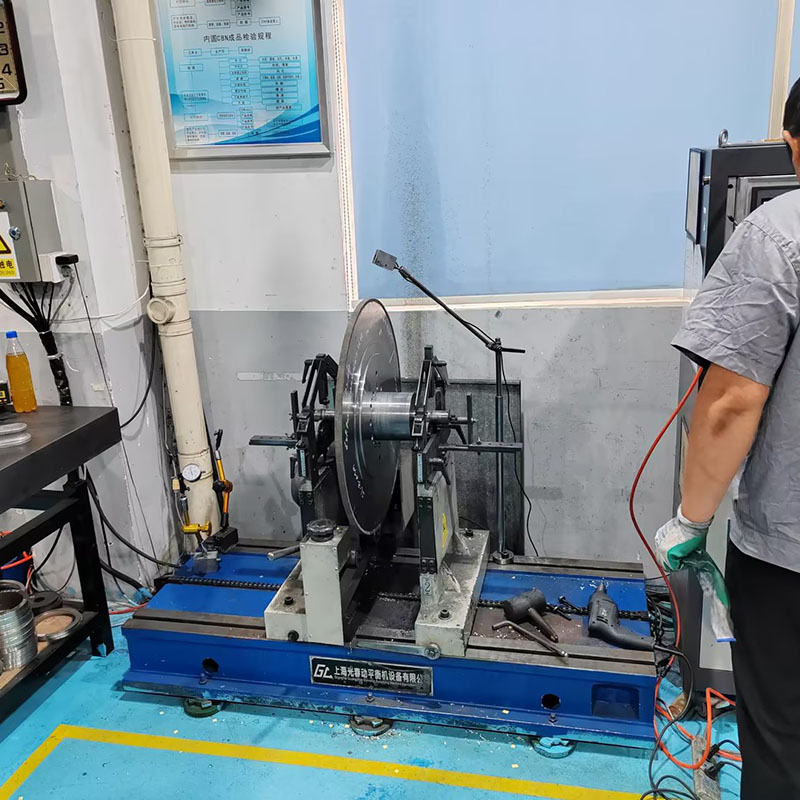

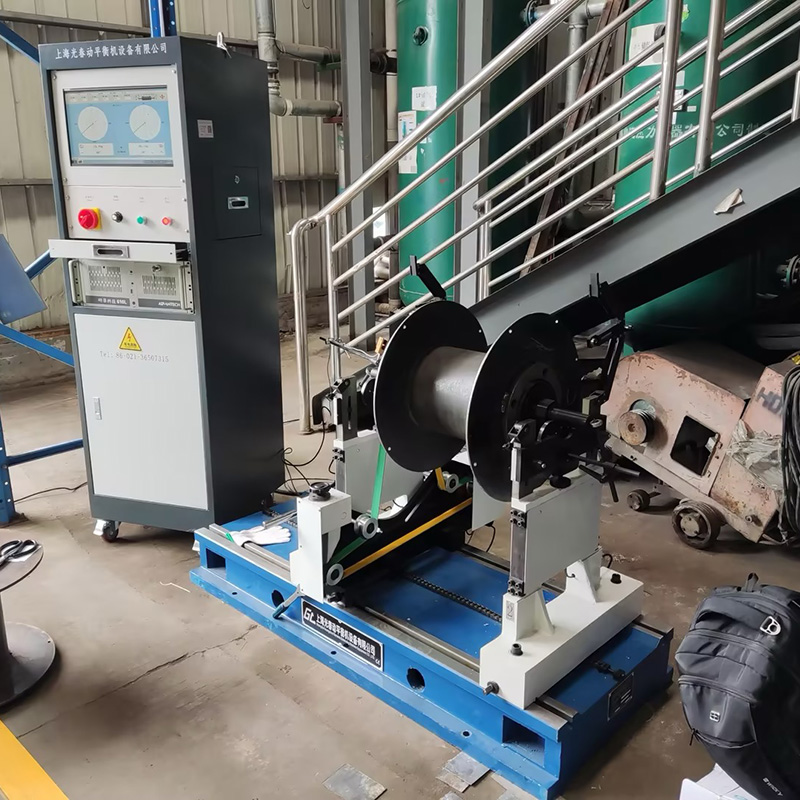

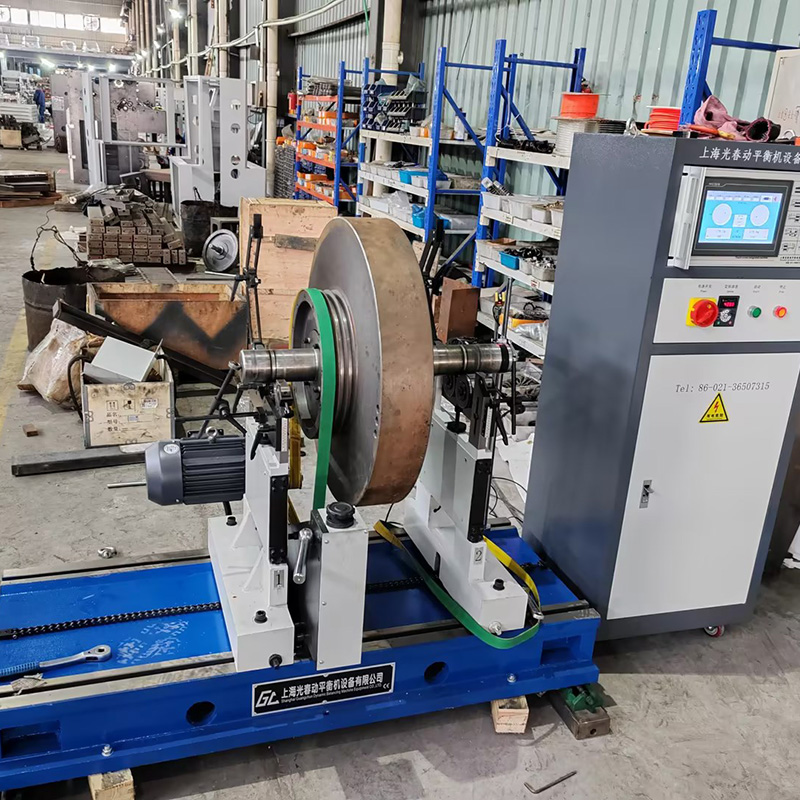

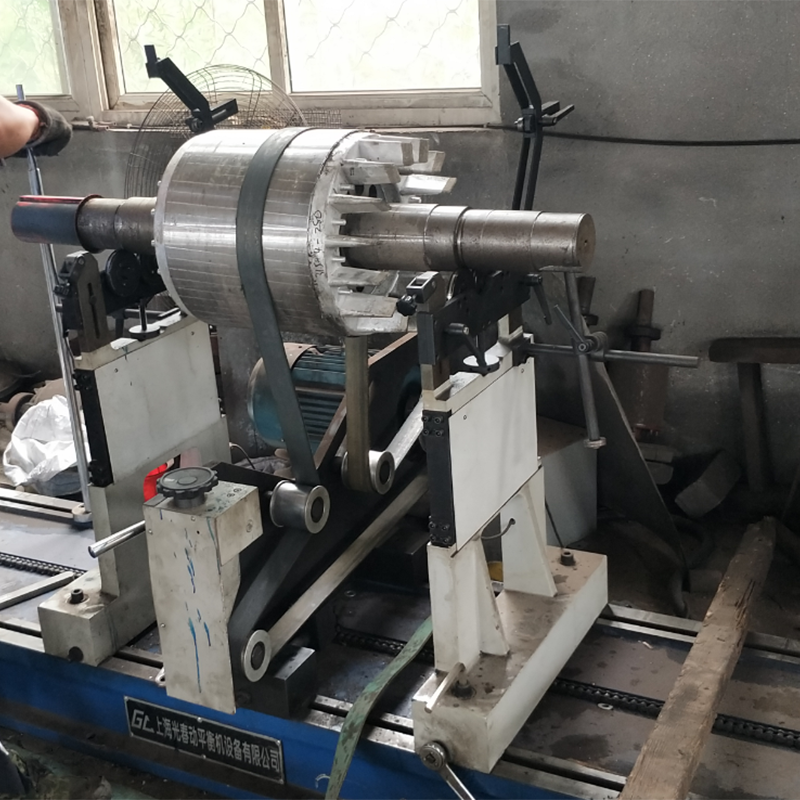

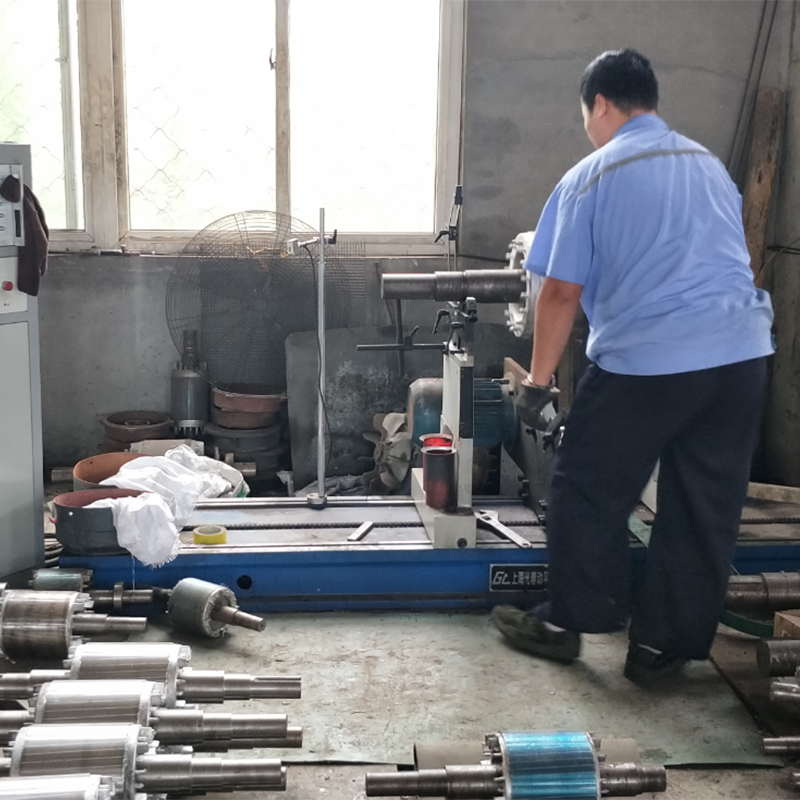

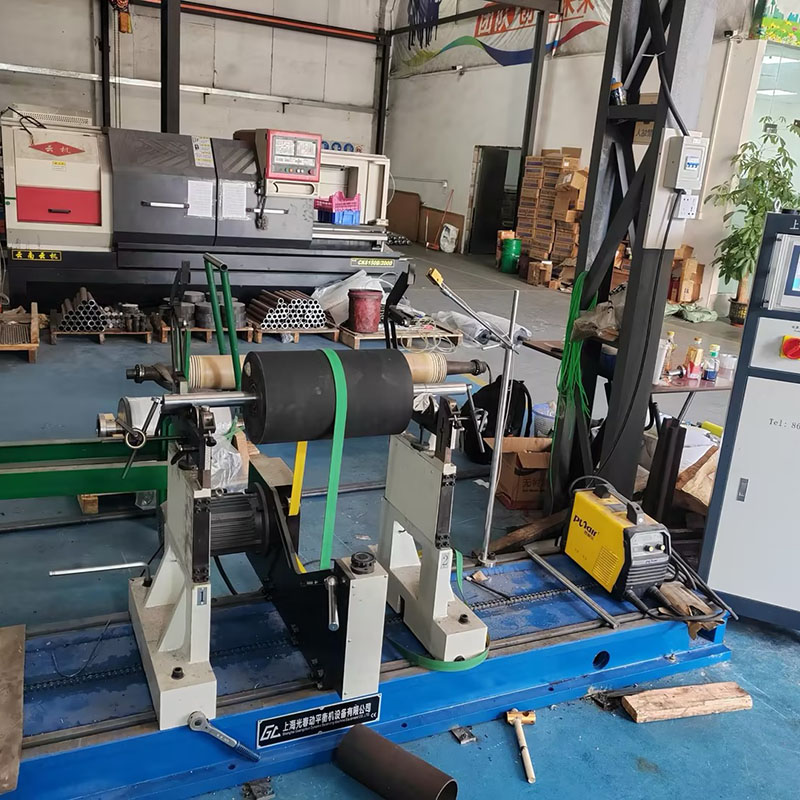

It is used for balancing various types of medium motors, impellers and shafts.

This machine adopts belt drive, with high precision of balancing quality, easy to dismantle, fast startup and high working efficiency.

Technical Parameter
Video
Inquiry

Technical Parameter

Specification	YYQ-160	YYQ-300	YYQ-500
Max Weight of Workpiece(kg)	160	300	500
Max Diameter of Workpiece(mm)	φ1260	φ1260	φ1500
Distance Range Between Two Support Bearings(mm)	125-1300	125-1600	125-1600
Bed Length(mm)	1500	1800	1800
Journal Diameter Range of Workpiece(mm)	φ15-180 Customization	φ15-180 Customization	φ15-180 Customization
Belt Driving Diameter(mm)	φ20-500	φ20-500	φ20-600
Speed when the diameter of the workpiece drive is 100mm(r/min)	Variable frequency stepless speed regulation	Variable frequency stepless speed regulation	Variable frequency stepless speed regulation
Motor Power(kw)	1.5	1.5	2.2
Min Achievable Residual Specific Unbalance (emar)	≤0.15g.mm/kg	≤0.15g.mm/kg	≤0.15g.mm/kg
Unbalance reduction ratio URR (%)	≥95%	≥95%	≥95%
