5kg self driven balancing machine -1

Self driving dynamic balancing machine

Home >  Products >  Self driving dynamic balancing machine

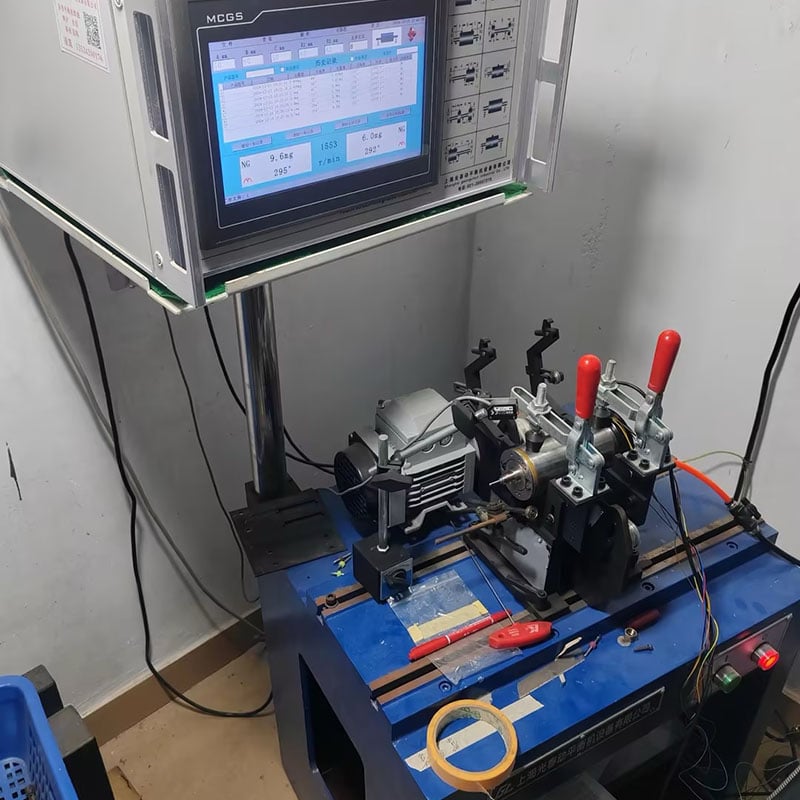

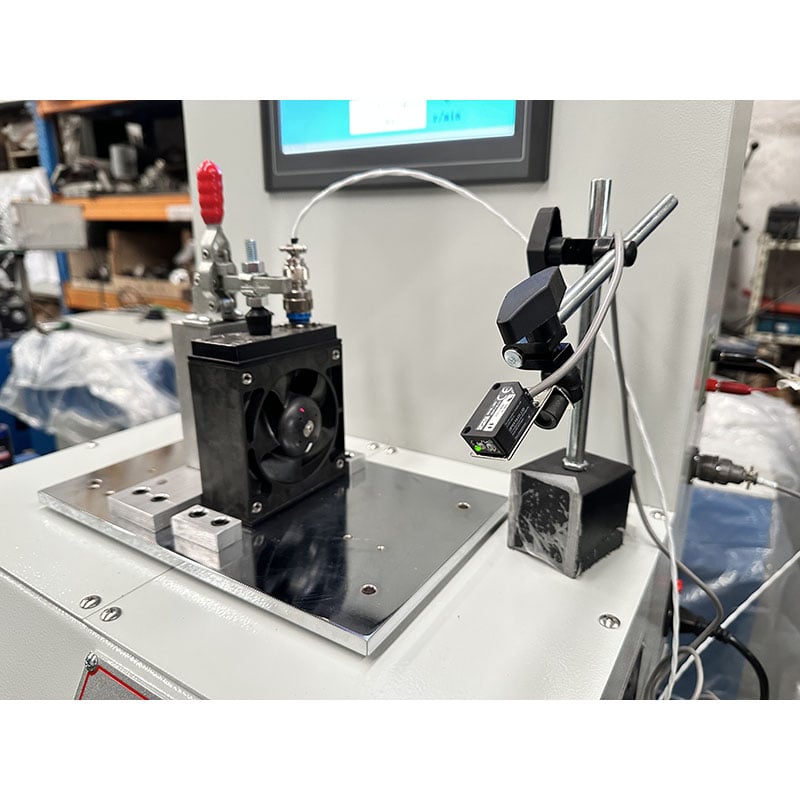

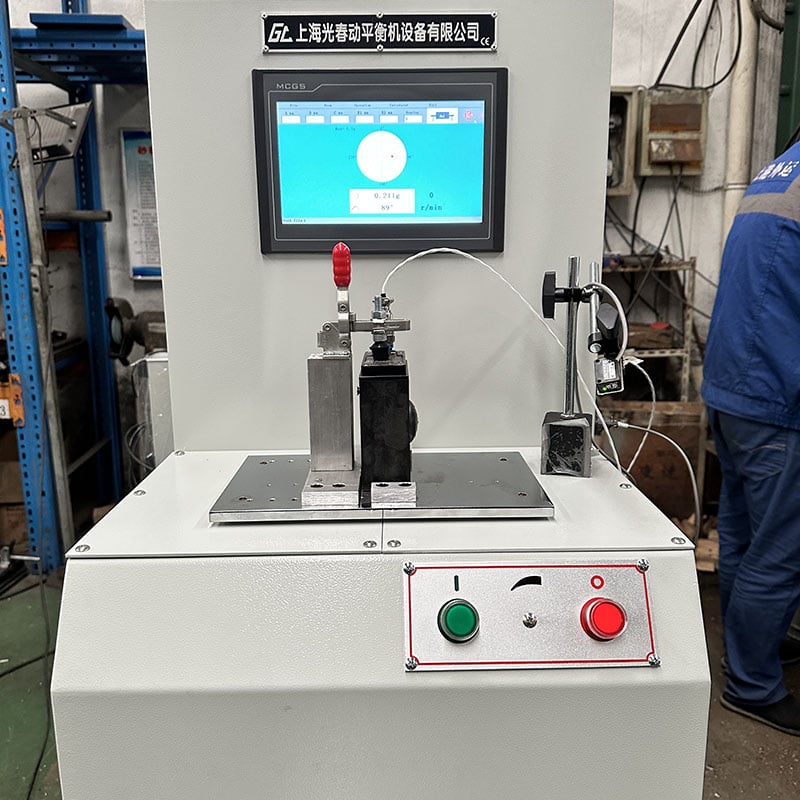

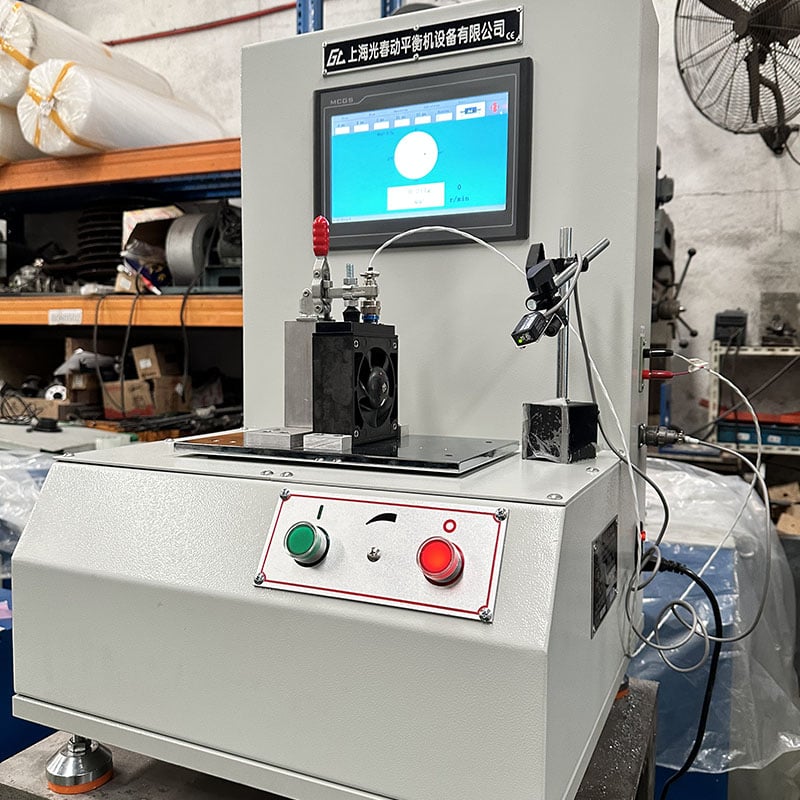

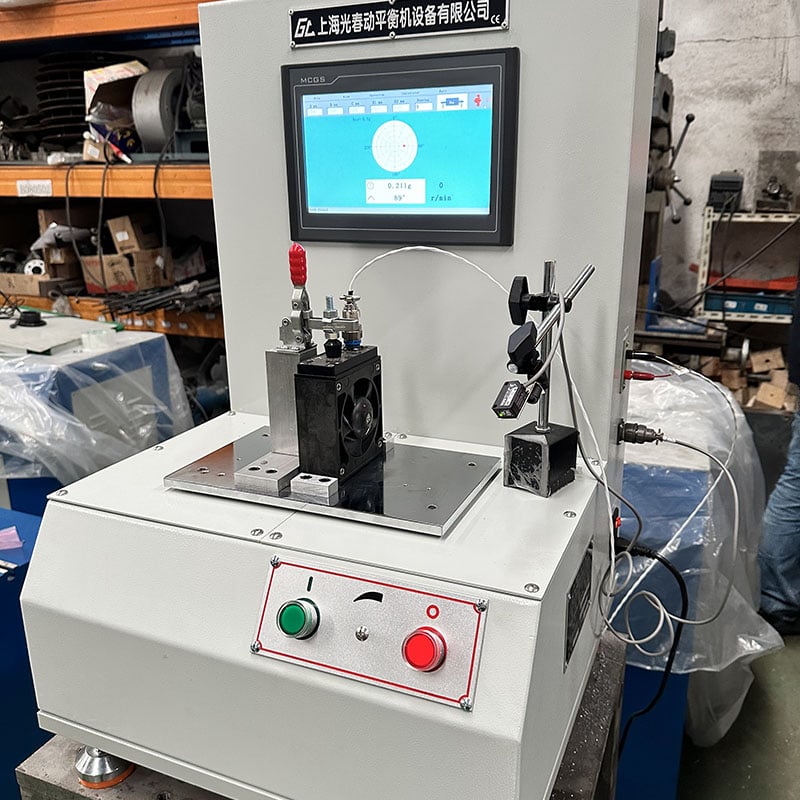

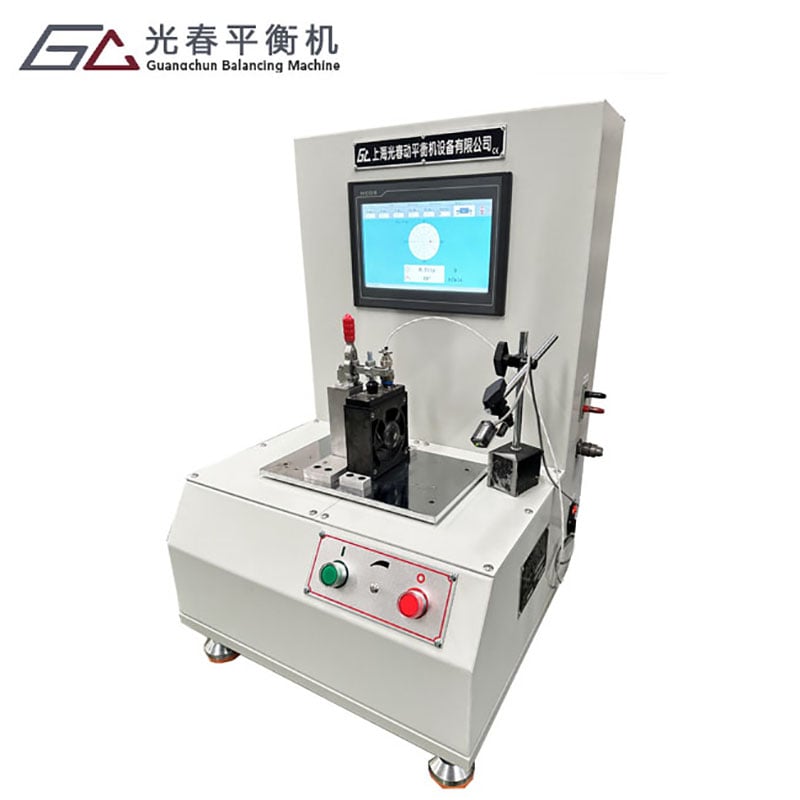

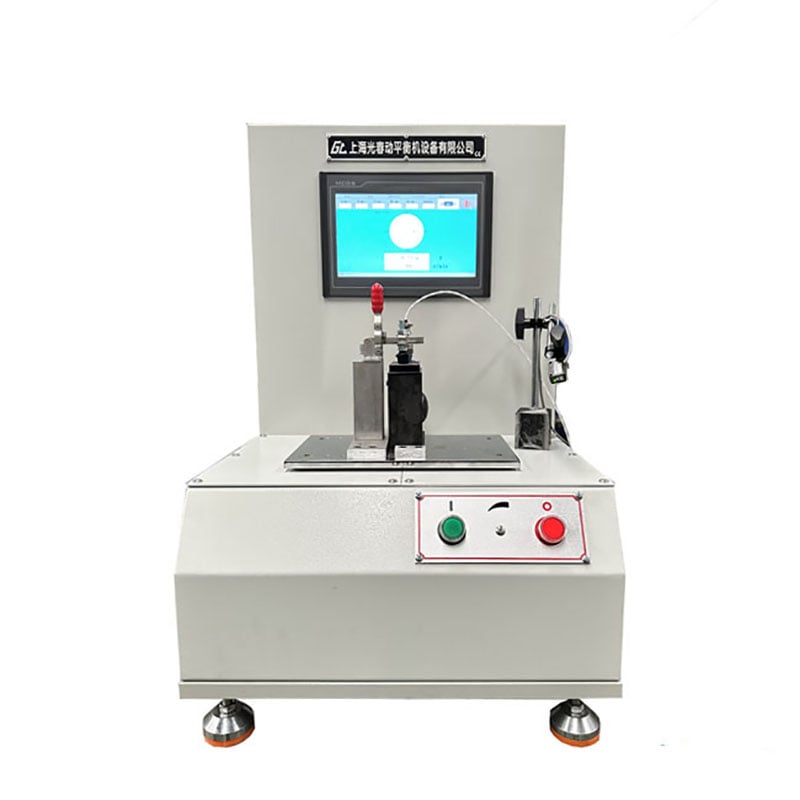

1.6/5Kg Self-driven balancing machine

It is mainly used for the overall balancing of workpieces such as external rotors, warm air blower and coil fans, taking full account of the balancing accuracy of the overall assembly, Eliminating the amount of unbalance mass caused by the manufacturing accuracy of bearings and other components and overall assembly errors. Improve the quality of our customers' products.

This machine adopts soft support pedestal system with high precision. Special fixtures can be customized for customers to make the overall balance more accurate.

  • Technical Parameter
  • Video
  • Inquiry
Technical Parameter
Specification RHZ-1.6 RHZ-5
Max Weight of Workpiece(kg) 1.6 5
Max Diameter of Workpiece(mm) φ200 φ200
Dynamic Balance Speed(r/min) 200-5000r/min 1000-5000r/min
Driving Mode self-powered workpiece drive self-powered workpiece drive
Min Achievable Residual Unbalance(emar)per-surface ≤0.3g.mm/kg ≤0.3g.mm/kg
Unbalance reduction ratio(%) 95% 95%
