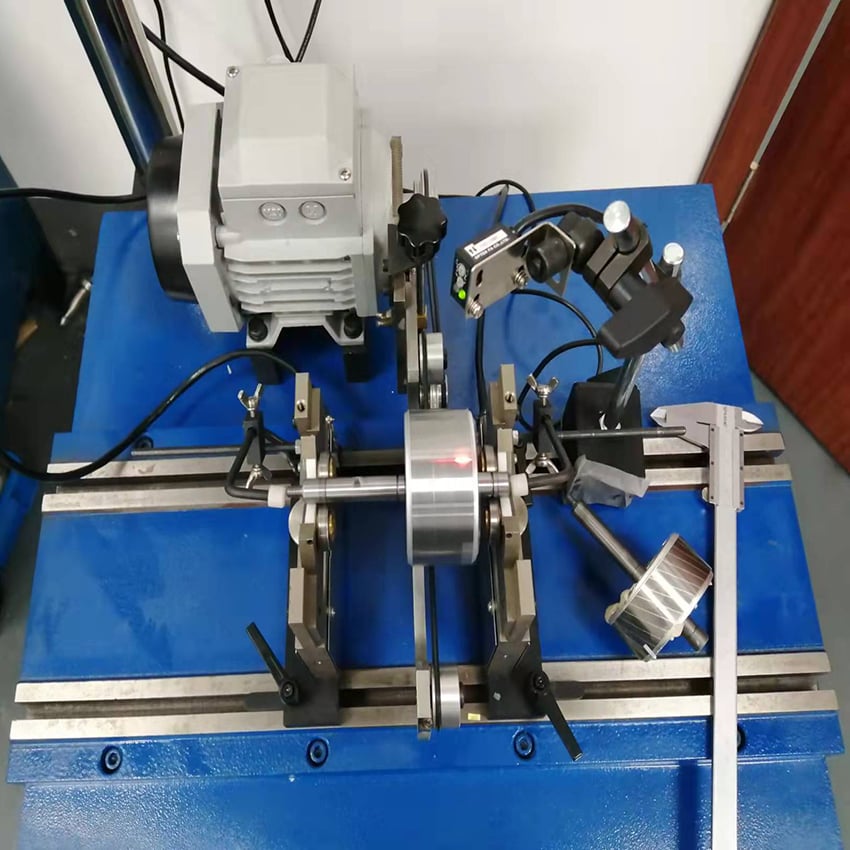

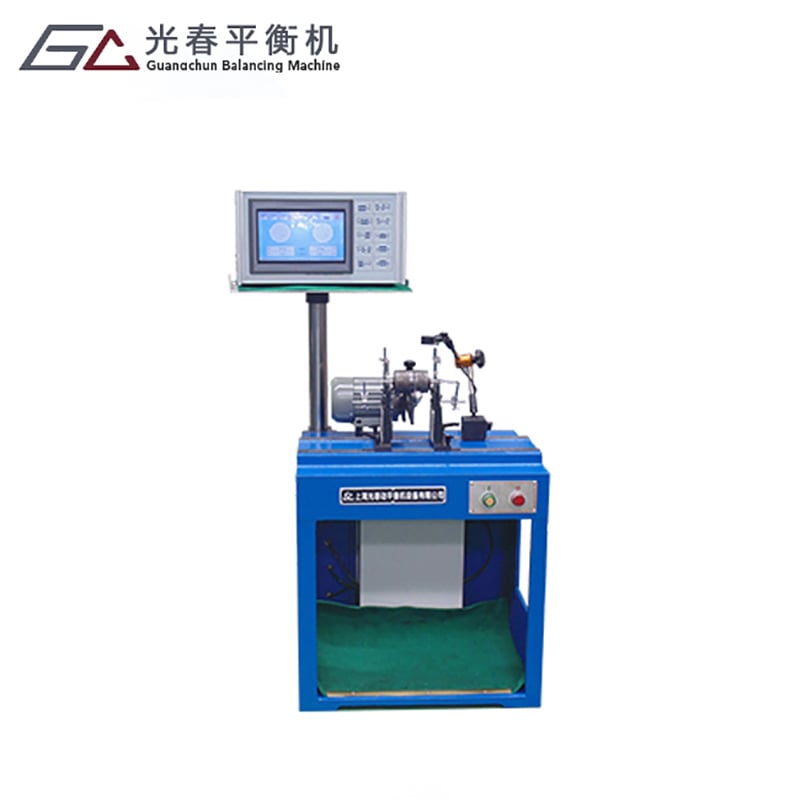

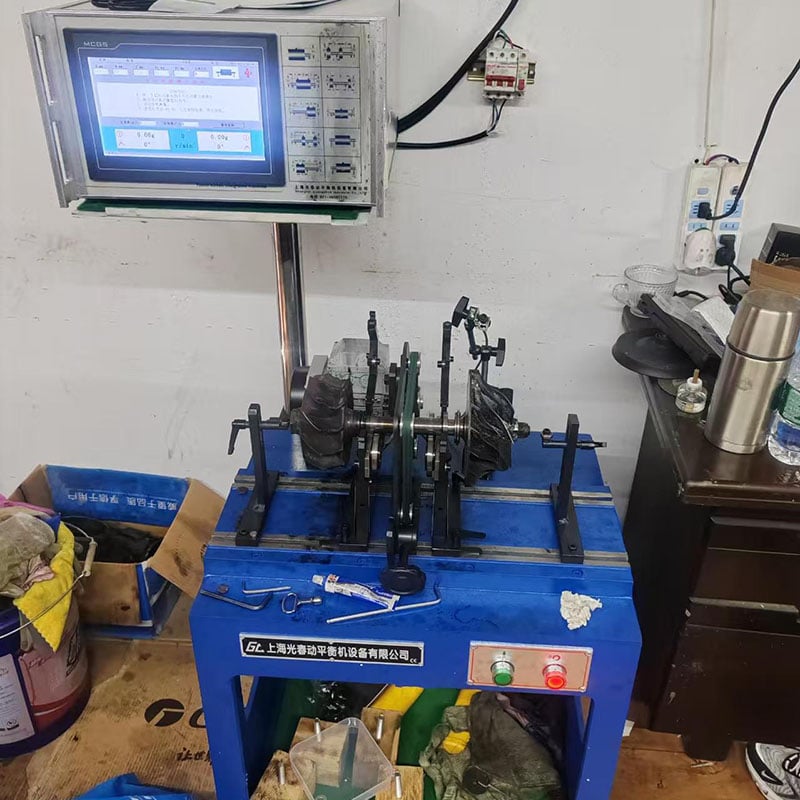

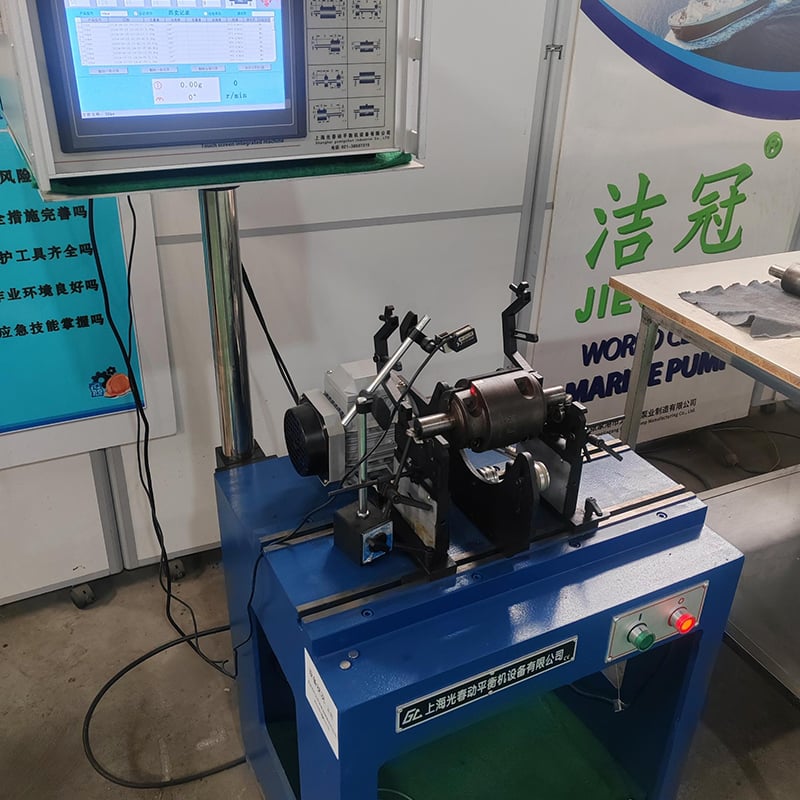

1.6/5/16Kg belt drive balancing machine

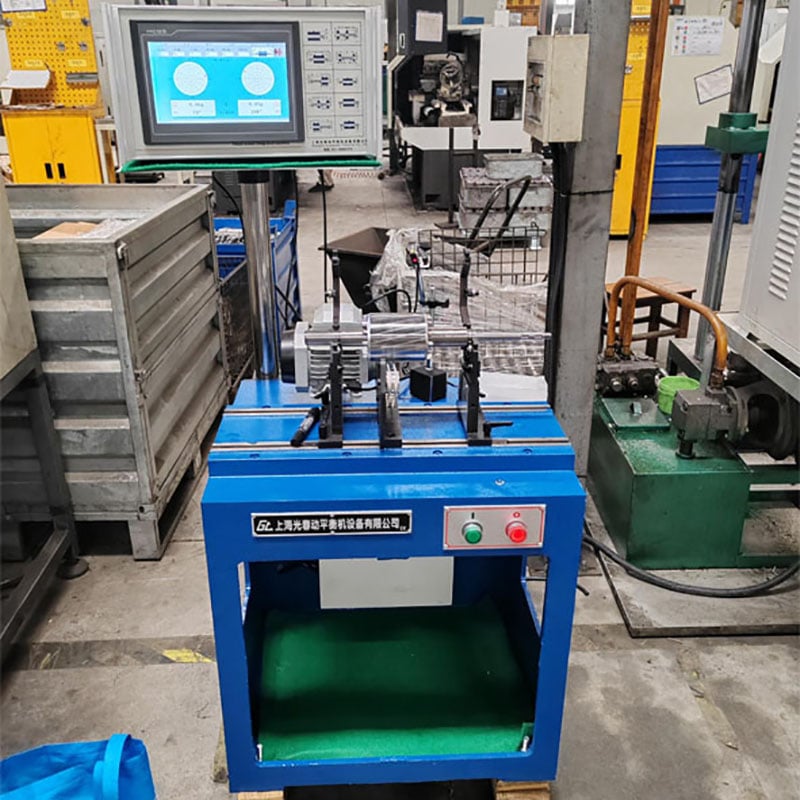

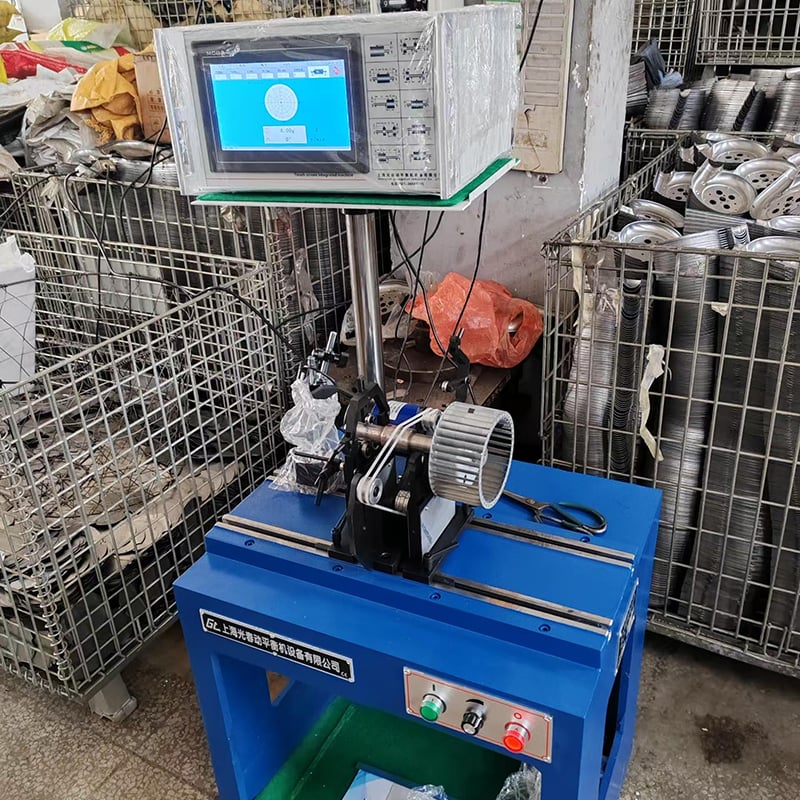

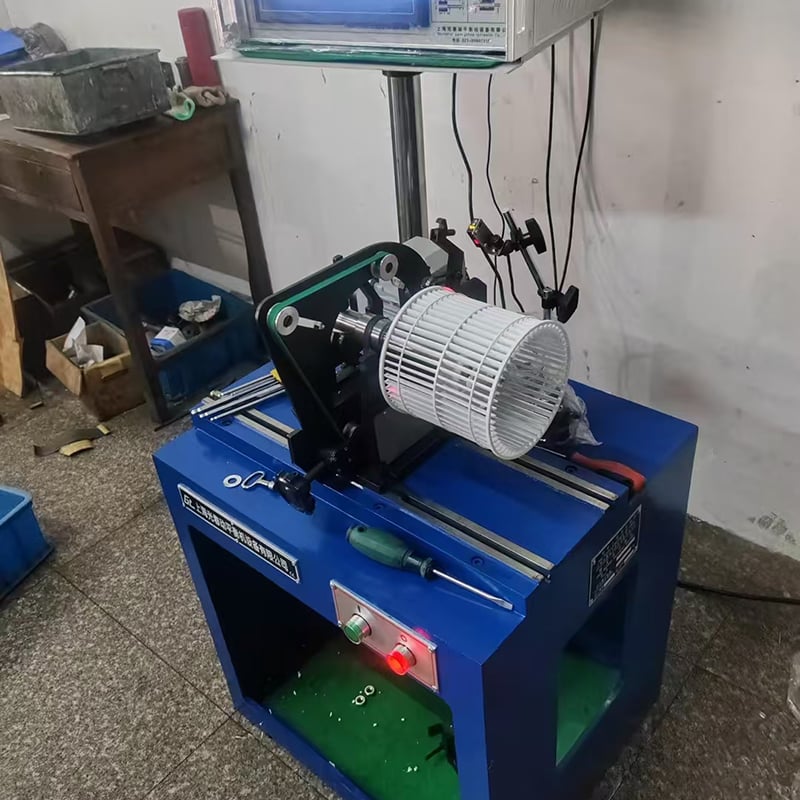

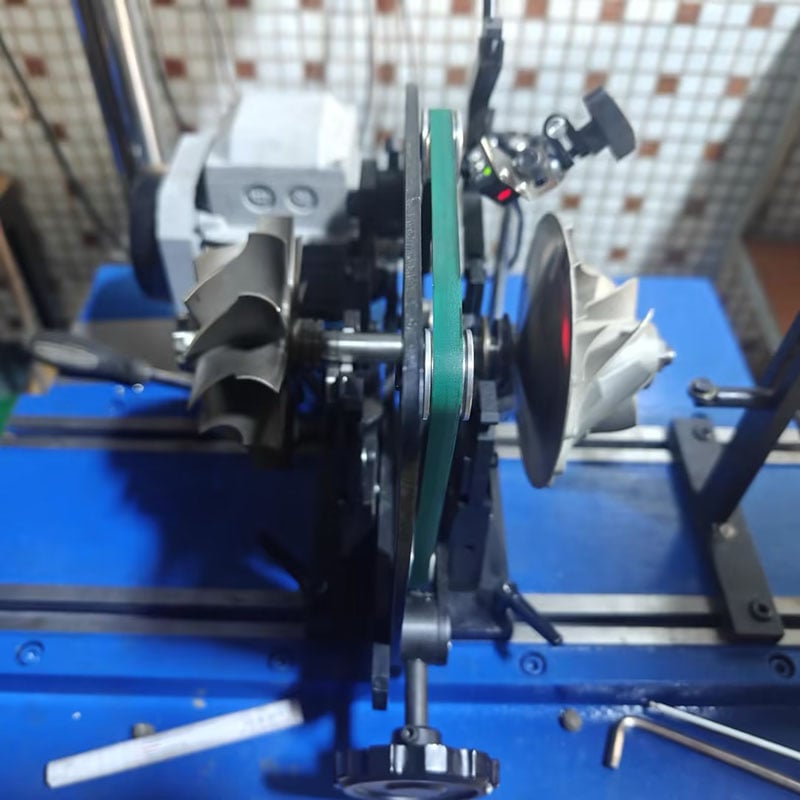

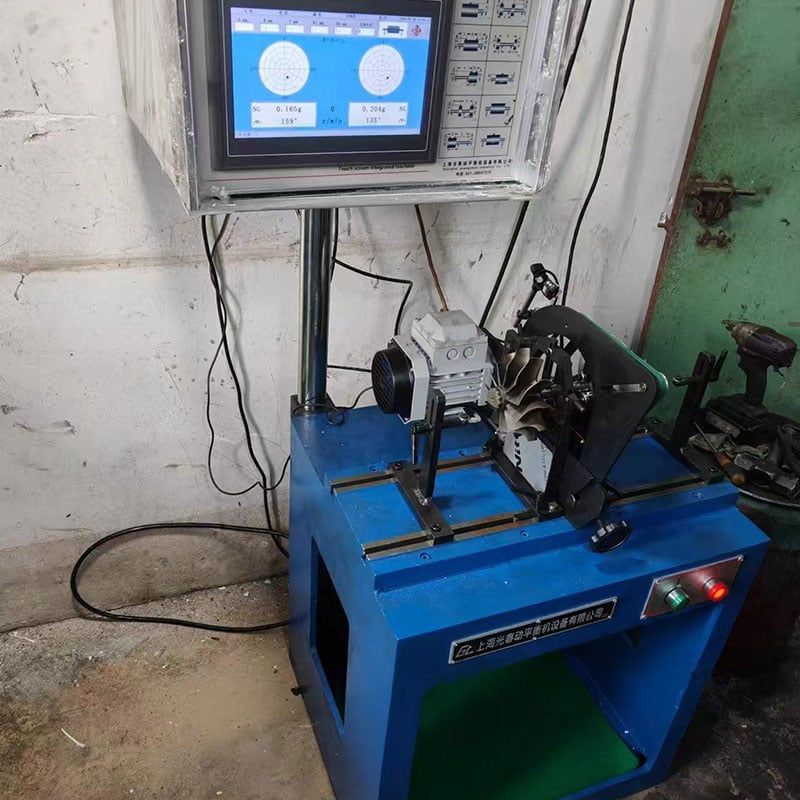

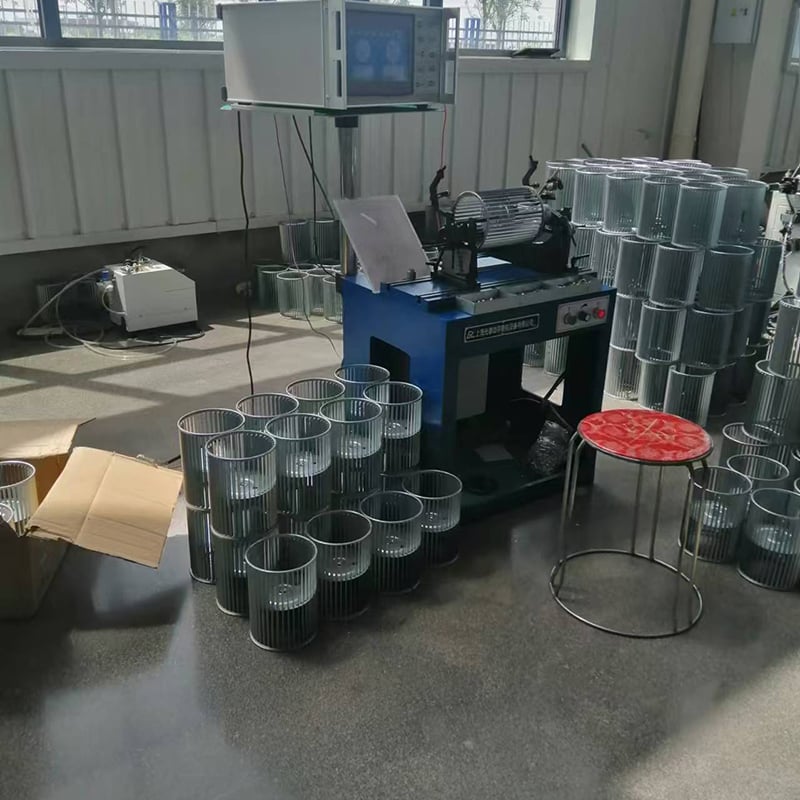

It is used for balancing various types of small motors, impellers and shafts.

This machine adopts belt drive, with high precision of balancing quality, easy to dismantle, fast startup and high working efficiency.

Specification	YYQ-1.6	YYQ-5	YYQ-16
Max Weight of Workpiece(kg)	1.6	5	16
Max Diameter of Workpiece(mm)	φ260	φ260	φ260
Distance Range Between Two Support Bearings(mm)	60-550	60-550	60-550
Bed Length(mm)	600	600	600
Journal Diameter Range of Workpiece(mm)	φ3-40 Customization	φ3-40 Customization	φ5-40 Customization
Belt Driving Diameter（mm）	φ15-85	φ15-85	φ15-150
Speed when the diameter of the workpiece drive is 100mm（r/min）	570/1200	570/1200	570/1200
Motor Power（kw）	0.25	0.25	0.25
Min Achievable Residual Specific Unbalance (e_mar)	≤0.15g.mm/kg	≤0.15g.mm/kg	≤0.15g.mm/kg
Unbalance reduction ratio URR (%)	≥95%	≥95%	≥95%
