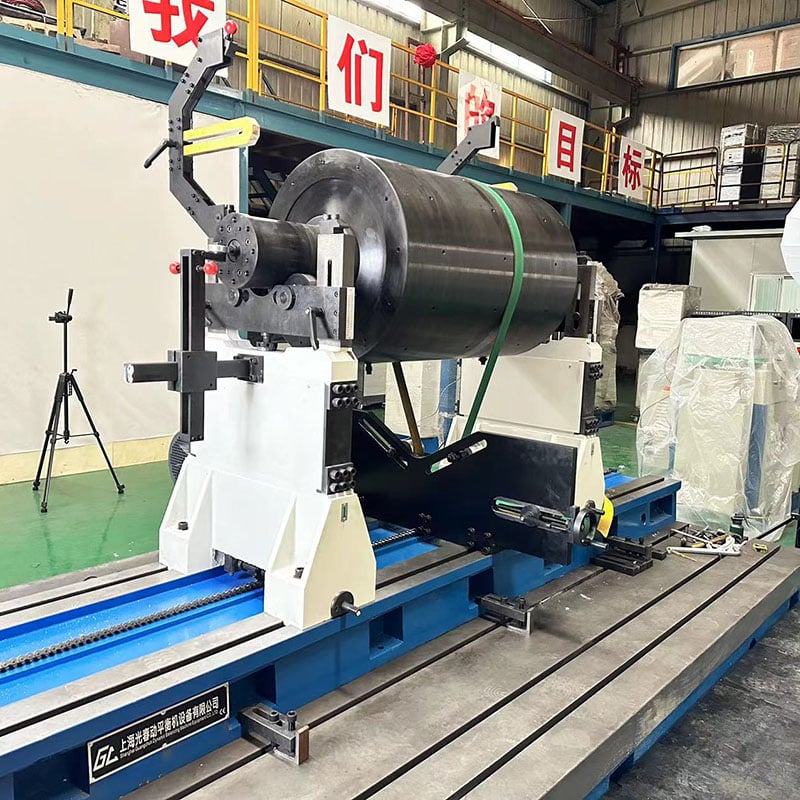

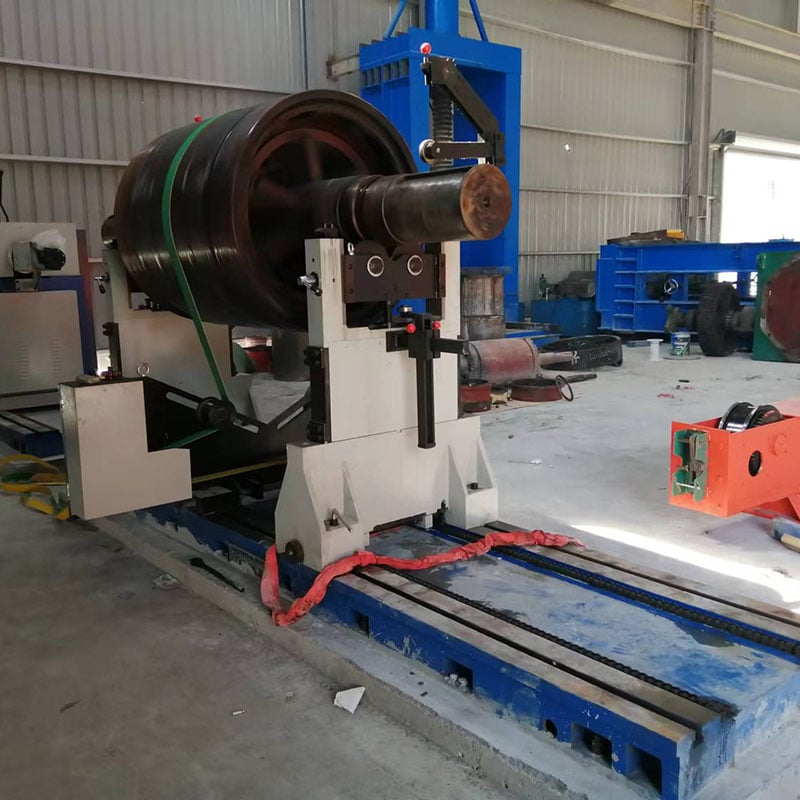

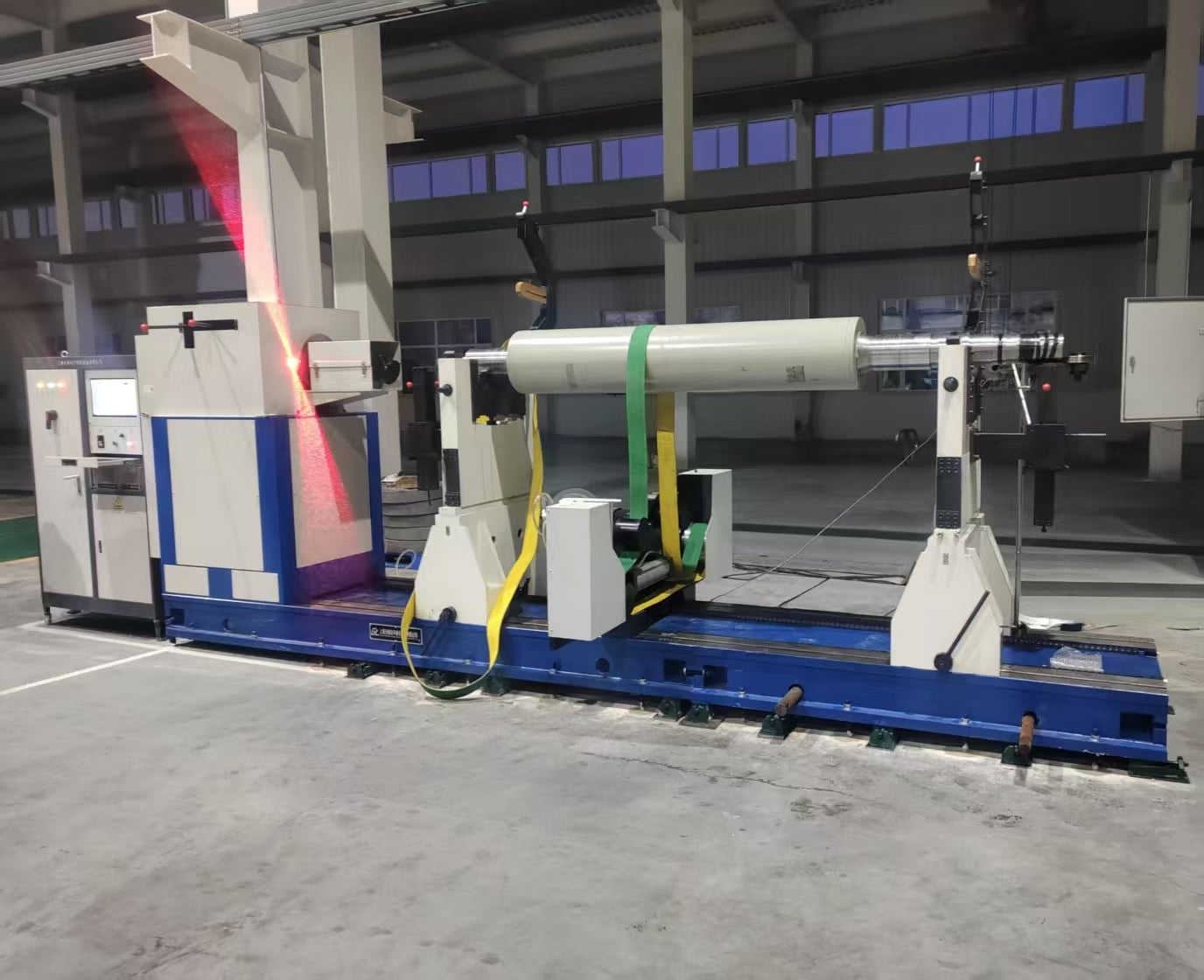

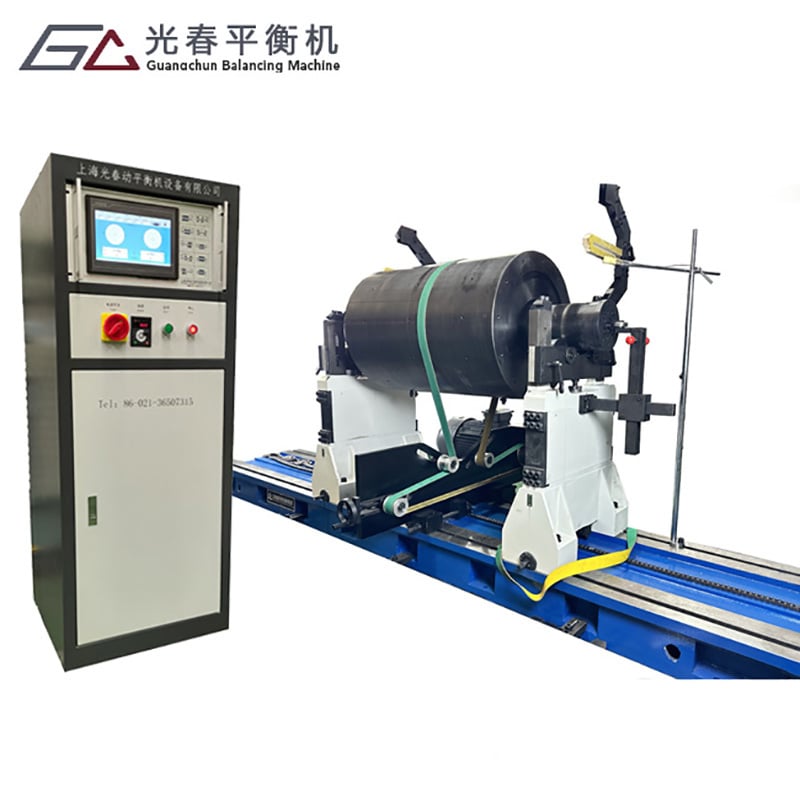

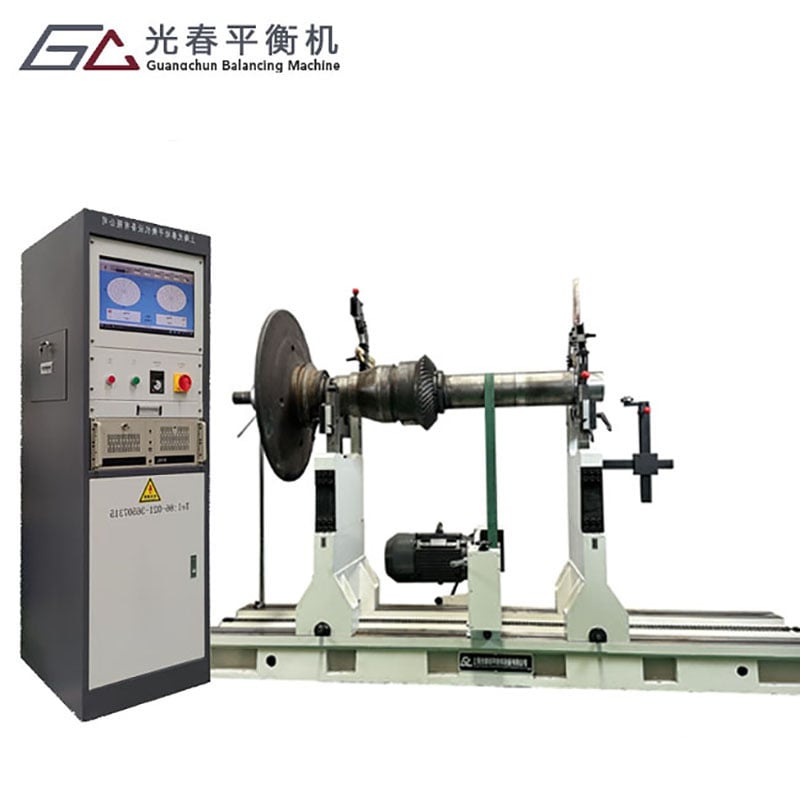

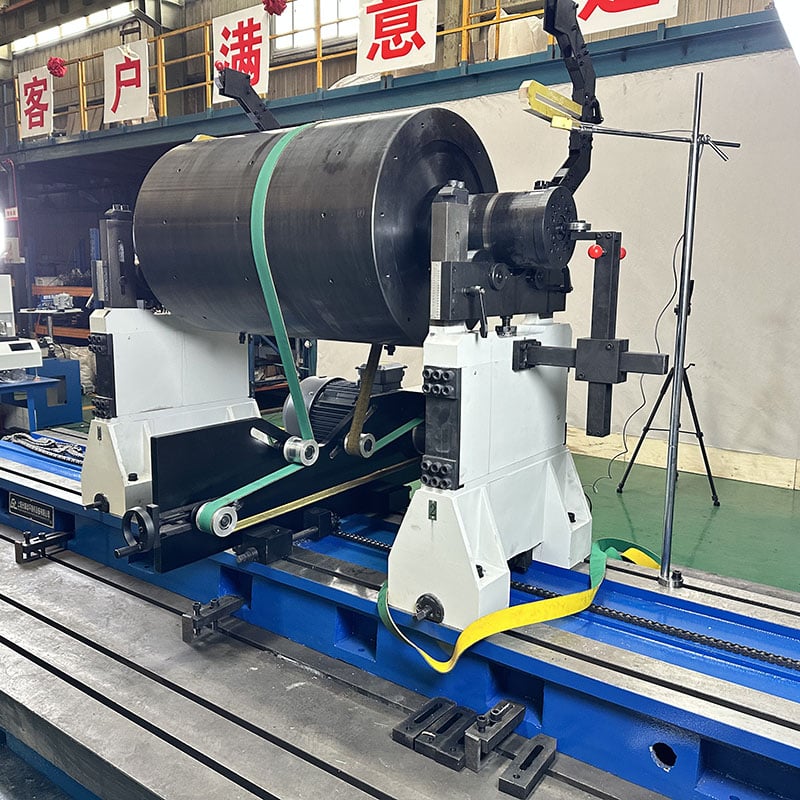

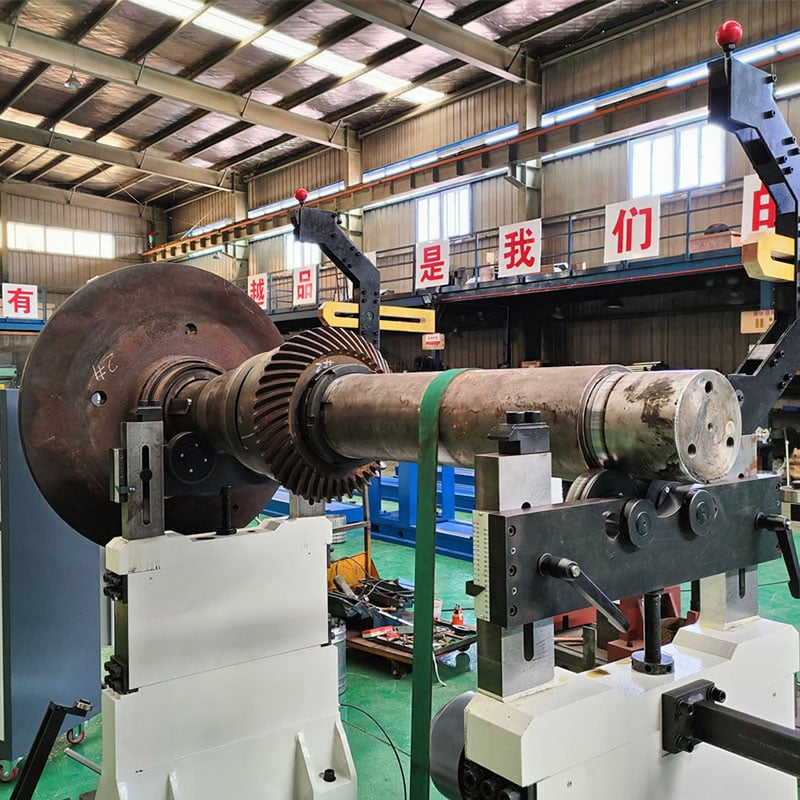

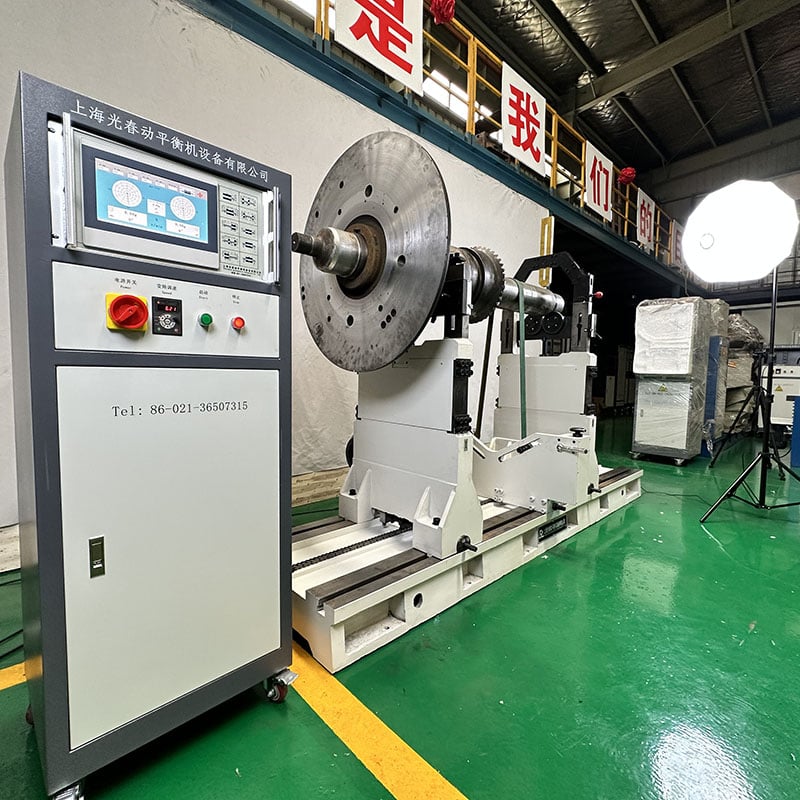

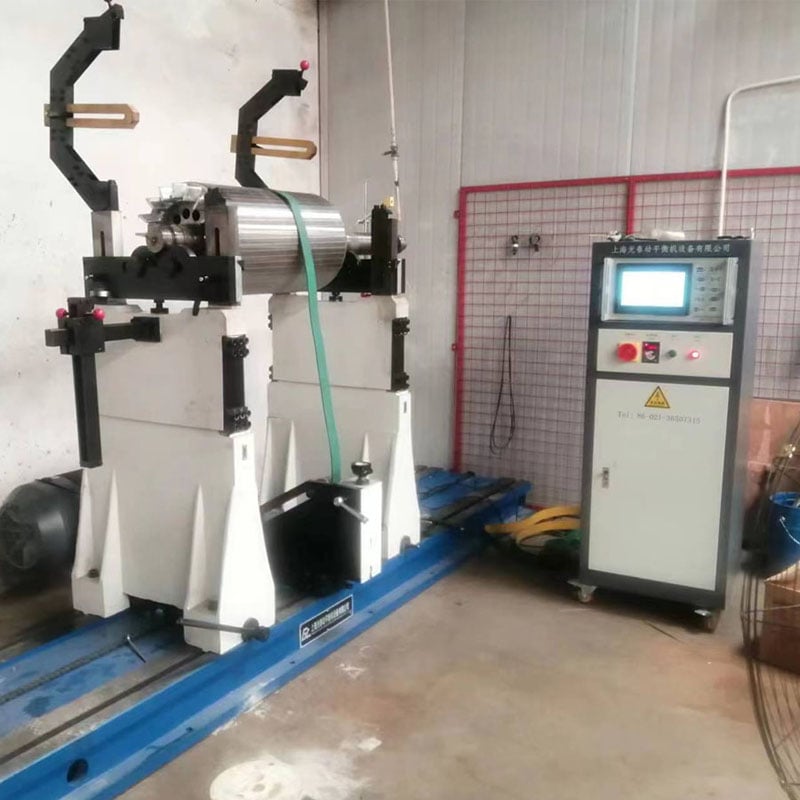

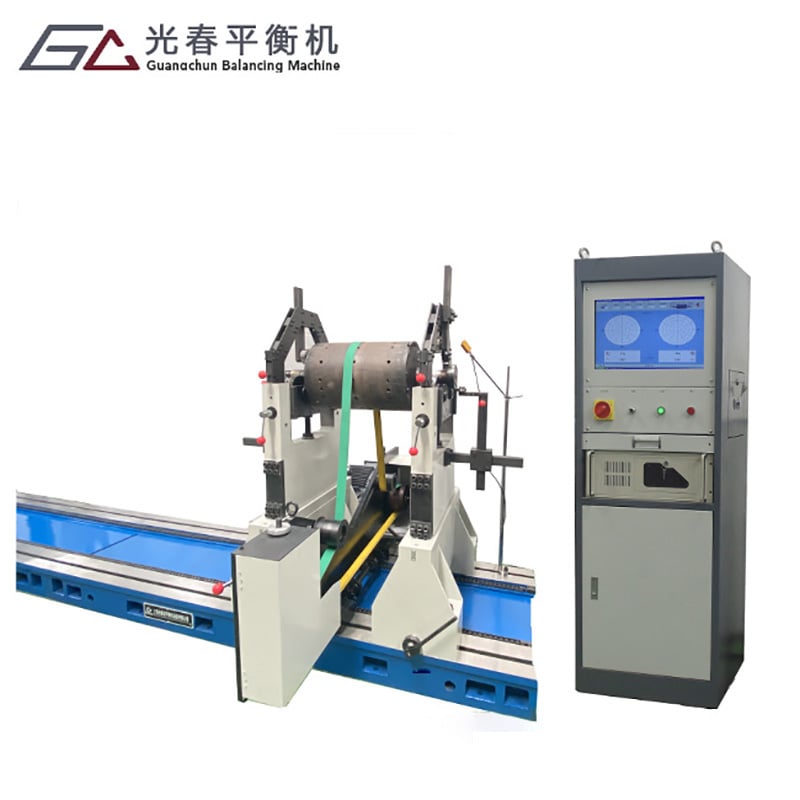

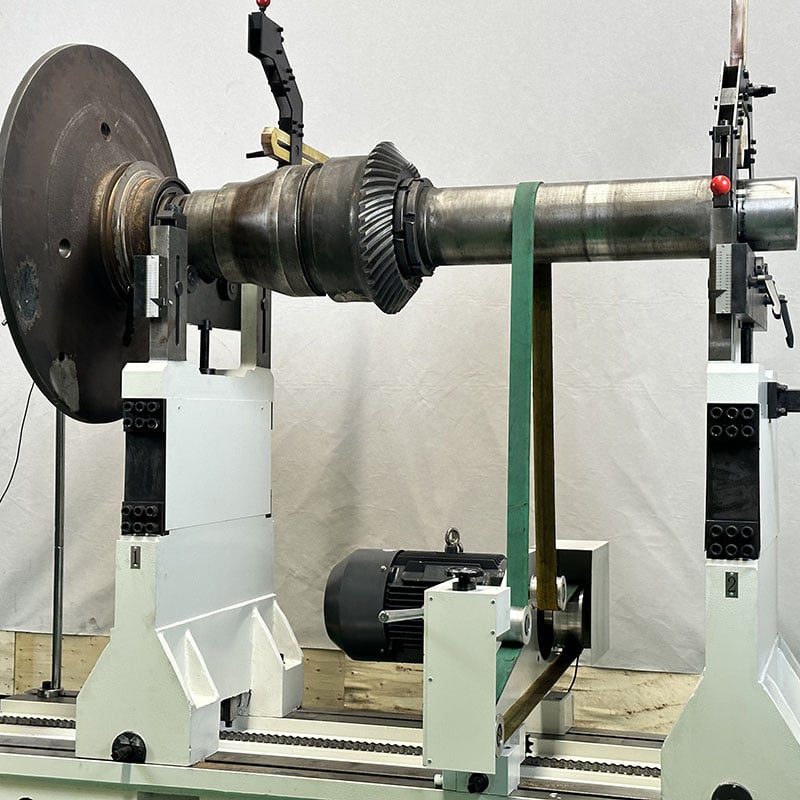

It is used for balancing various types of large motors, impellers and shafts.

This machine adopts belt drive, with high precision of balancing quality, easy to dismantle, fast startup and high working efficiency.

Technical Parameter
Video
Inquiry

Technical Parameter

Specification	YYQ-5000	YYQ-10000	YYQ-20000
Max Weight of Workpiece(kg)	5000	10000	20000
Max Diameter of Workpiece(mm)	φ2100	φ2400	φ2800
Distance Range Between Two Support Bearings(mm)	500-3500	750-4500	750-5500
Bed Length(mm)	4000	5000	6000
Journal Diameter Range of Workpiece(mm)	φ40-320 Customization	φ50-400	φ50-400
Belt Driving Diameter（mm）	φ50-1000	φ50-1000	φ50-1300
Speed when the diameter of the workpiece drive is 100mm（r/min）	Variable frequency stepless speed regulation	Variable frequency stepless speed regulation	Variable frequency stepless speed regulation
Motor Power（kw）	15	22	37
Min Achievable Residual Specific Unbalance (e_mar)	≤0.25g.mm/kg	≤0.5g.mm/kg	≤0.5g.mm/kg
Unbalance reduction ratio URR (%)	≥95%	≥95%	≥95%
