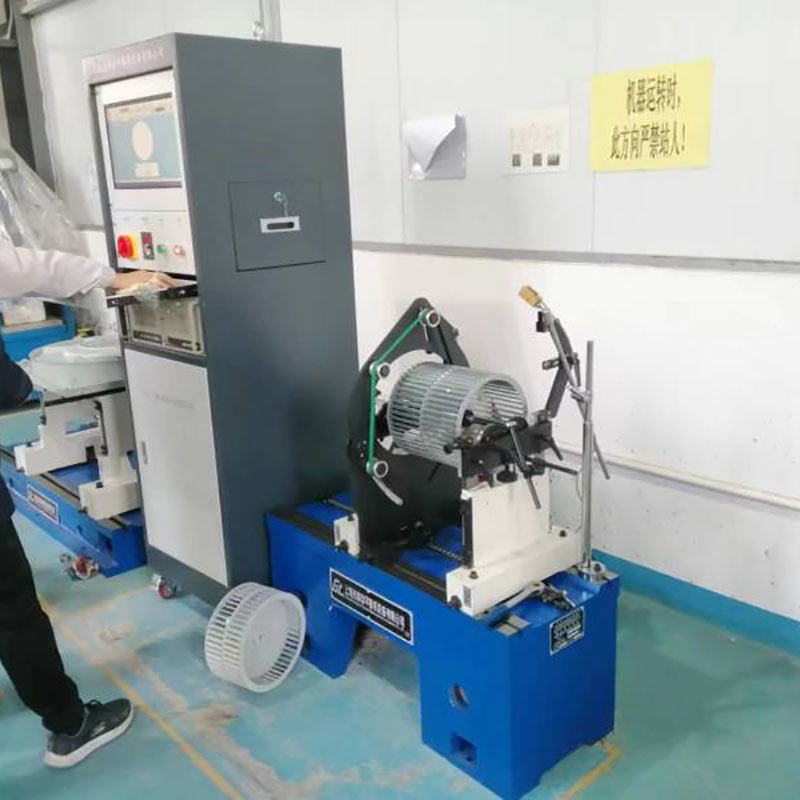

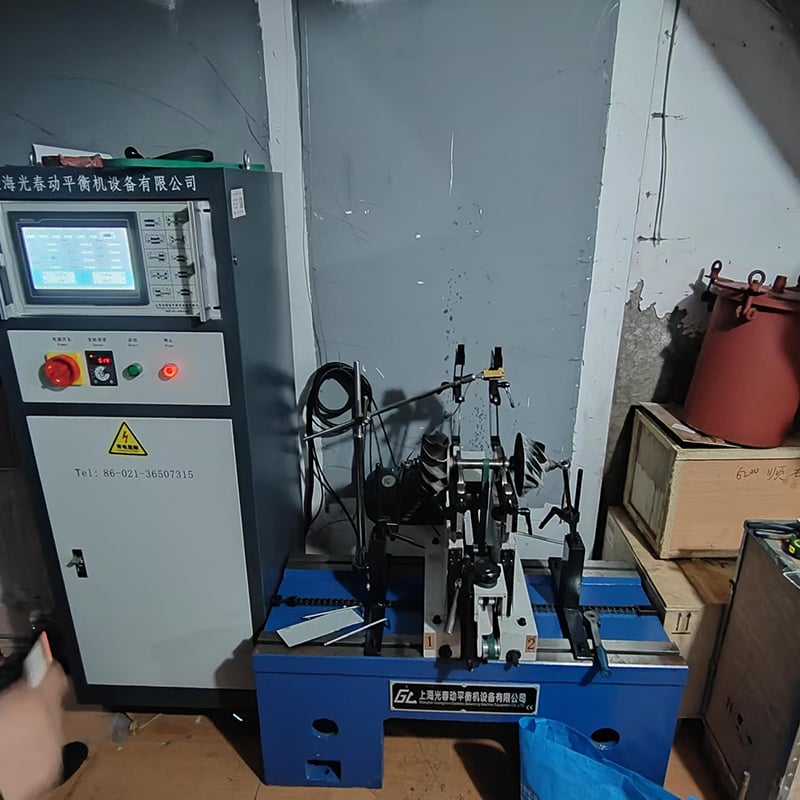

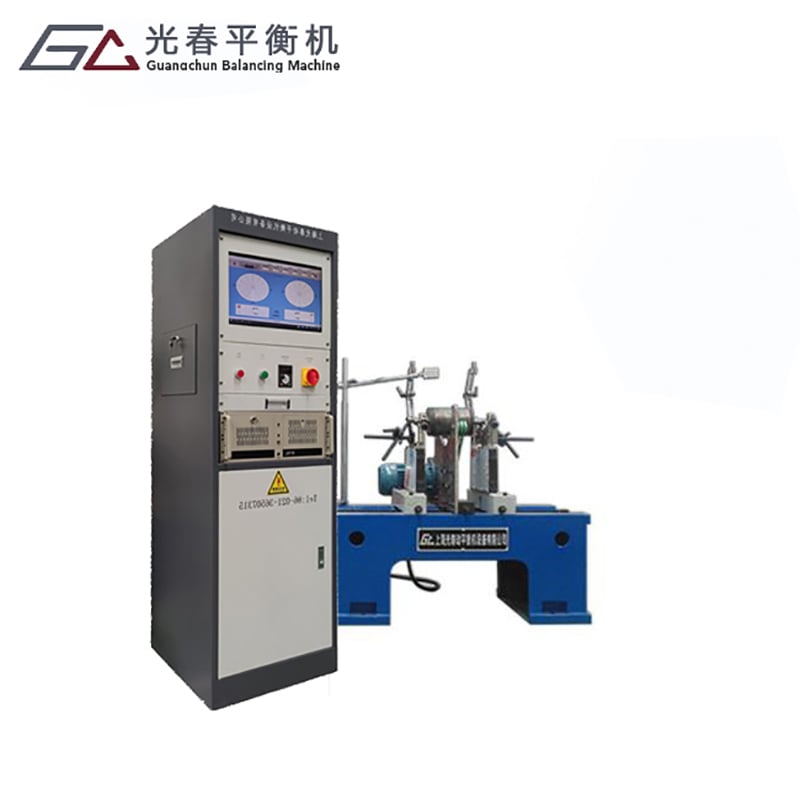

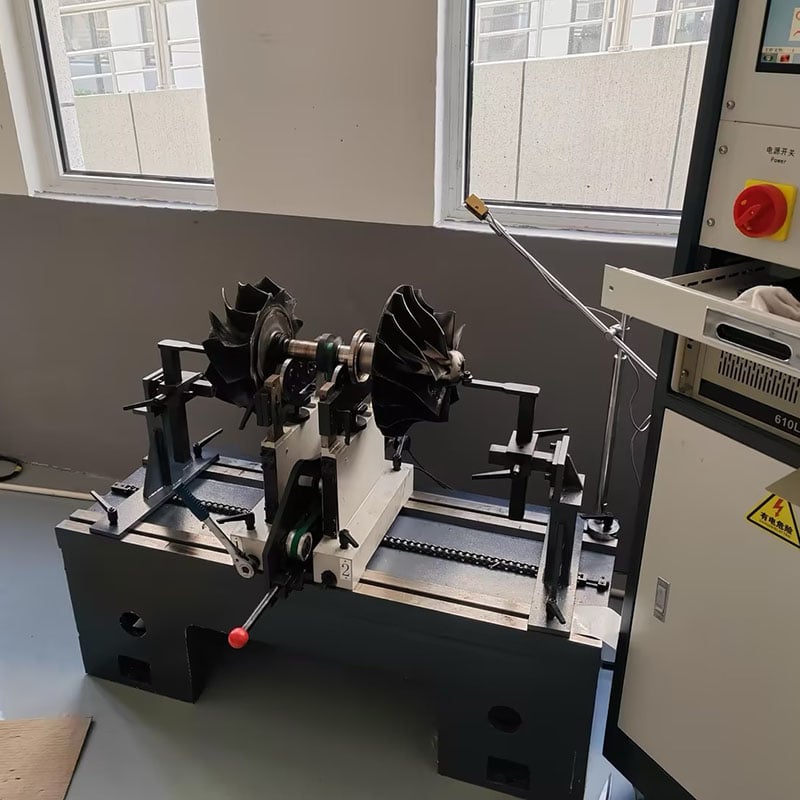

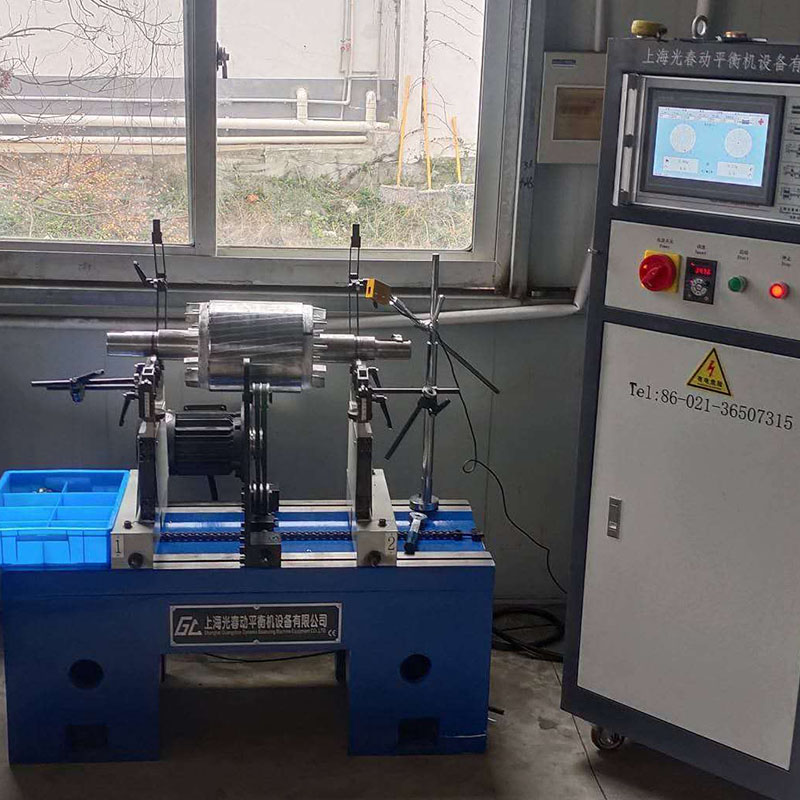

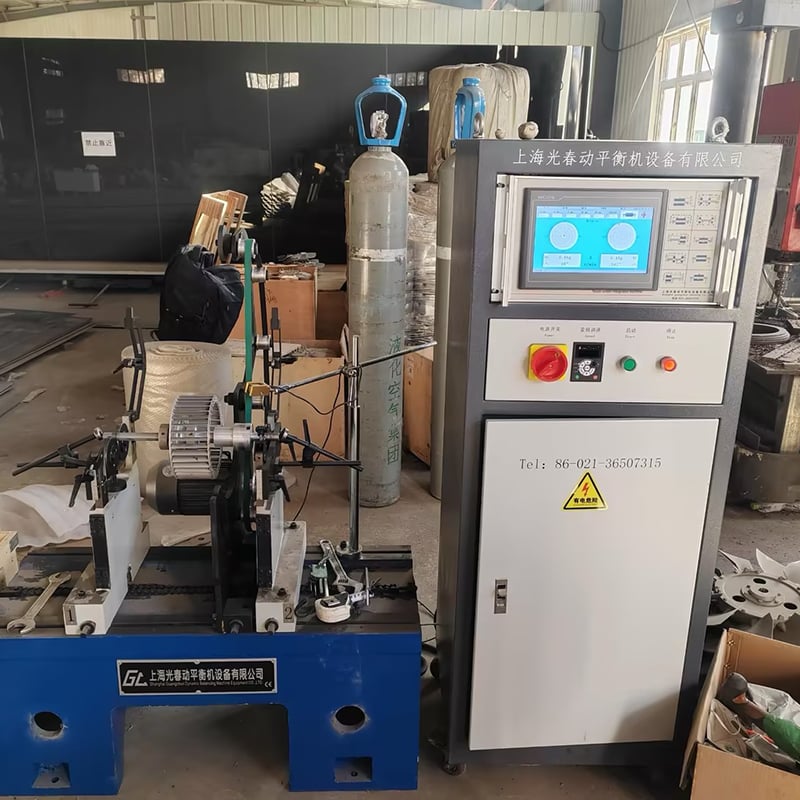

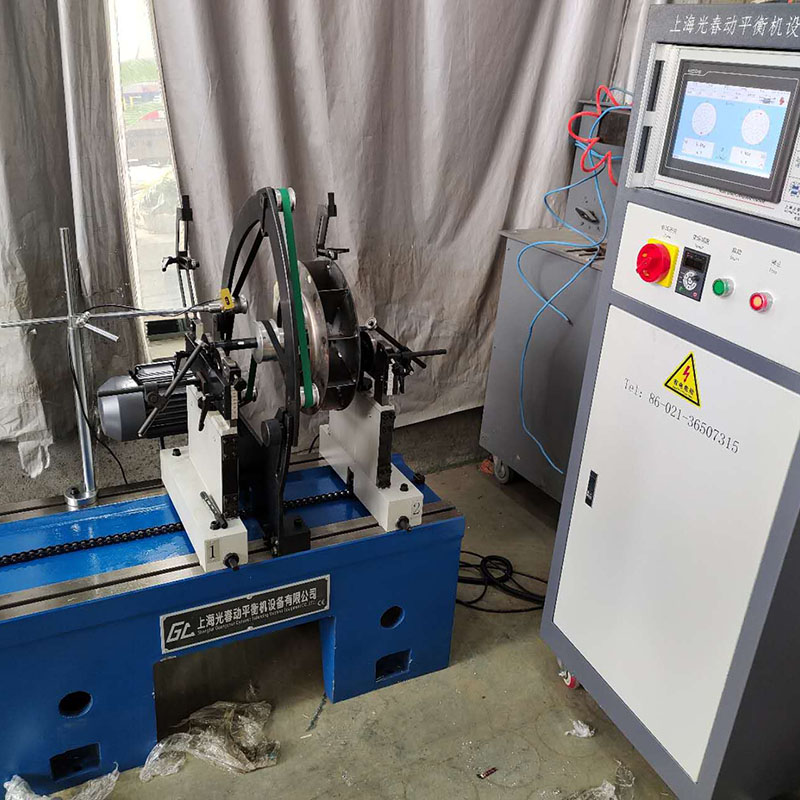

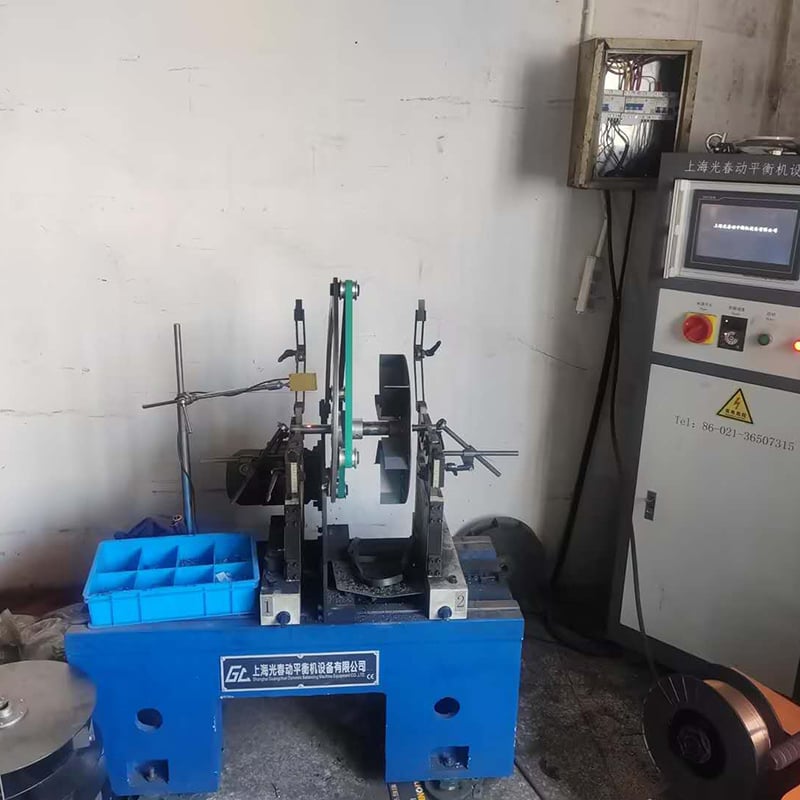

It is used for balancing various types of small motors, impellers and shafts.

This machine adopts belt drive, with high precision of balancing quality, easy to dismantle, fast startup and high working efficiency.

Technical Parameter
Video
Inquiry

Technical Parameter

Specification	YYQ-30	YYQ-50	YYQ-70
Max Weight of Workpiece(kg)	30	50	70
Max Diameter of Workpiece(mm)	φ700	φ700	φ700
Distance Range Between Two Support Bearings(mm)	80-900	80-900	80-1100
Bed Length(mm)	1000	1000	1200
Journal Diameter Range of Workpiece(mm)	φ15-75 Customization	φ15-75 Customization	φ15-75 Customization
Belt Driving Diameter(mm)	φ25-300	φ25-300	φ25-300
Speed when the diameter of the workpiece drive is 100mm(r/min)	Variable frequency stepless speed regulation	Variable frequencystepless speed regulation	Variable frequencystepless speed regulation
Motor Power(kw)	0.75	0.75	0.75
Min Achievable Residual Specific Unbalance (emar)	≤0.15g.mm/kg	≤0.15g.mm/kg	≤0.15.mm/kg
Unbalance reduction ratio URR (%)	≥95%	≥95%	≥95%
