5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine
5000/7500/10000Kg universal joint balancing machine

5000/7500/10000Kg universal joint balancing machine

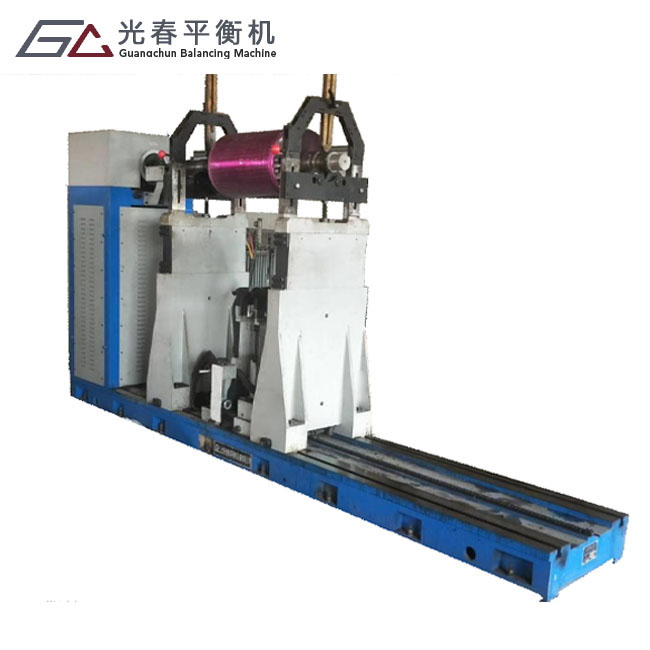

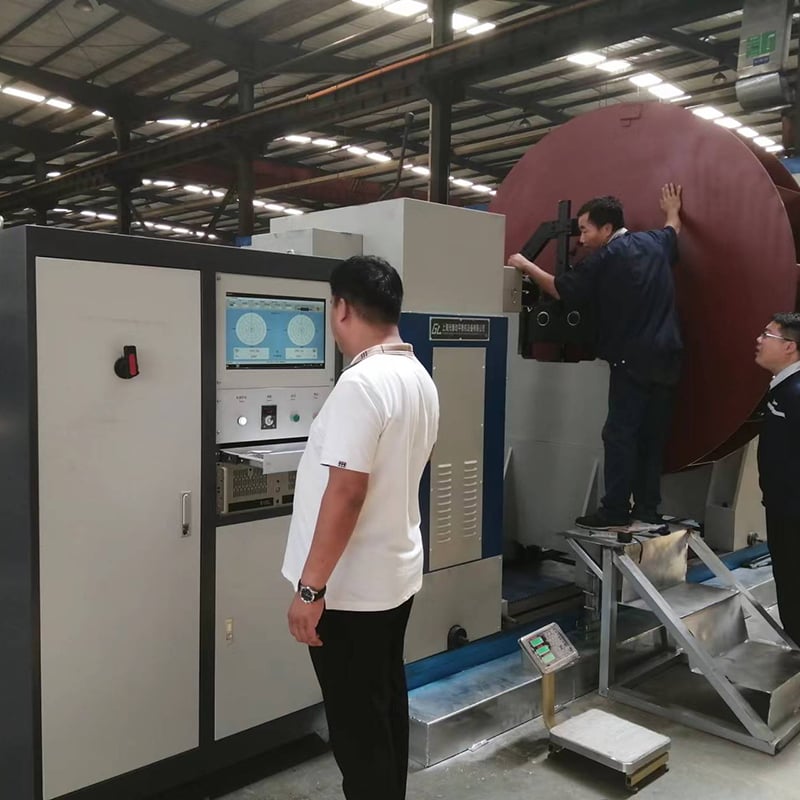

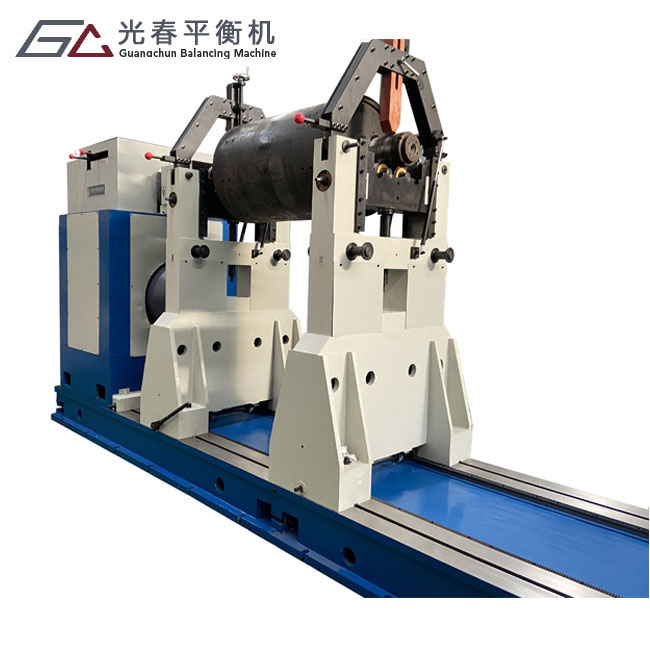

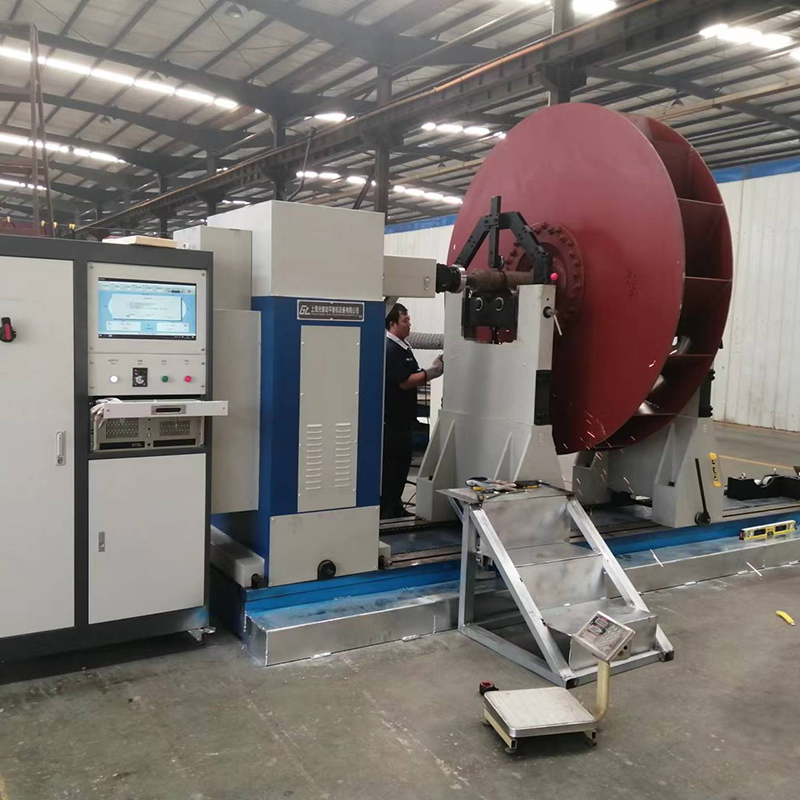

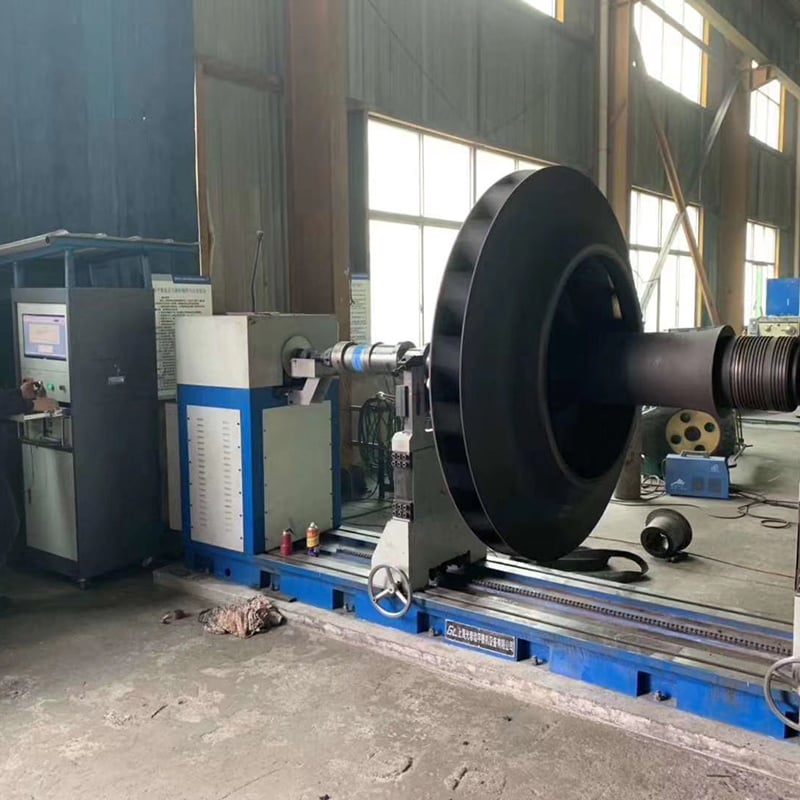

Apply to large and small motor rotor, blower impeller, centrifugal impeller, drying cylinder, and roller balance verification.

This machine adopts universal joint coupling transmission, infinitely variable speed regulation, with high driving power,high precision and convenient operation.

Inquiry
  • Technical Parameter
  • Video
  • Inquiry
Technical Parameter
Specification YYW-5000 YYW-7500 YYW-10000
Max Weight of Workpiece(kg) 5000 7500 10000
Max Diameter of Workpiece(mm) φ2100 φ2400 φ2800
Min Distance Between Two Support Bearings(mm) 320 320 450
Bed Length(mm) 4000 4000 4000
Maximum distance between end face of universal coupling and Center Of right support(mm) 2700 2700 2500
Journal Diameter Range of Workpiece(mm) φ40-320Customization φ40-320Customization φ50-400
Spindle speed(r/min) Variable frequency stepless speed regulation Variable frequency steplessspeed regulation Variable frequency steplessspeed regulation
Motor Power(kw) 22 30 37
Torque of Universal Joint Shaft (N.m) 700 700 1250
Min Achievable Residual Specific Unbalance(emar) ≤0.5g.mm/kg ≤0.5g.mm/kg ≤1g.mm/kg
Unbalance reduction ratio URR (%) ≥95% ≥95% ≥95%
