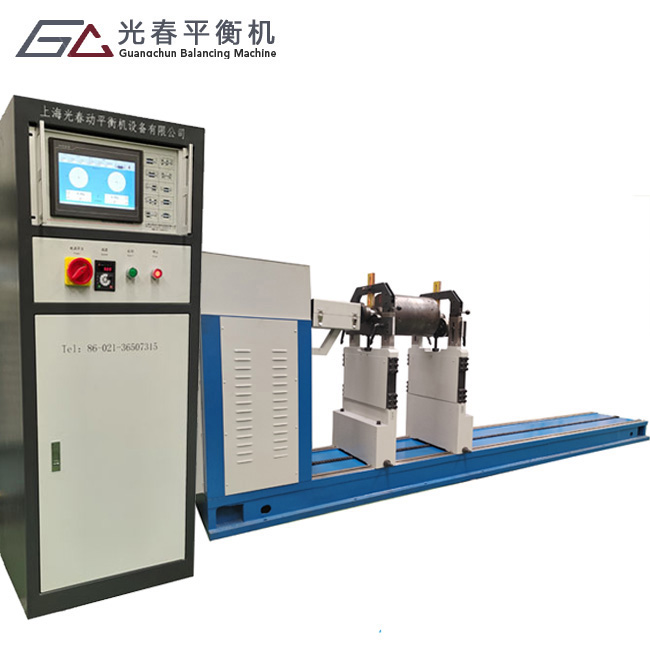

3000kg universal joint balancing machine-1

Universal jiont balancing machine

Home >  Products >  Universal jiont balancing machine

ALL PRODUCTS

1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine
1000/2000/3000Kg universal joint balancing machine

1000/2000/3000Kg universal joint balancing machine

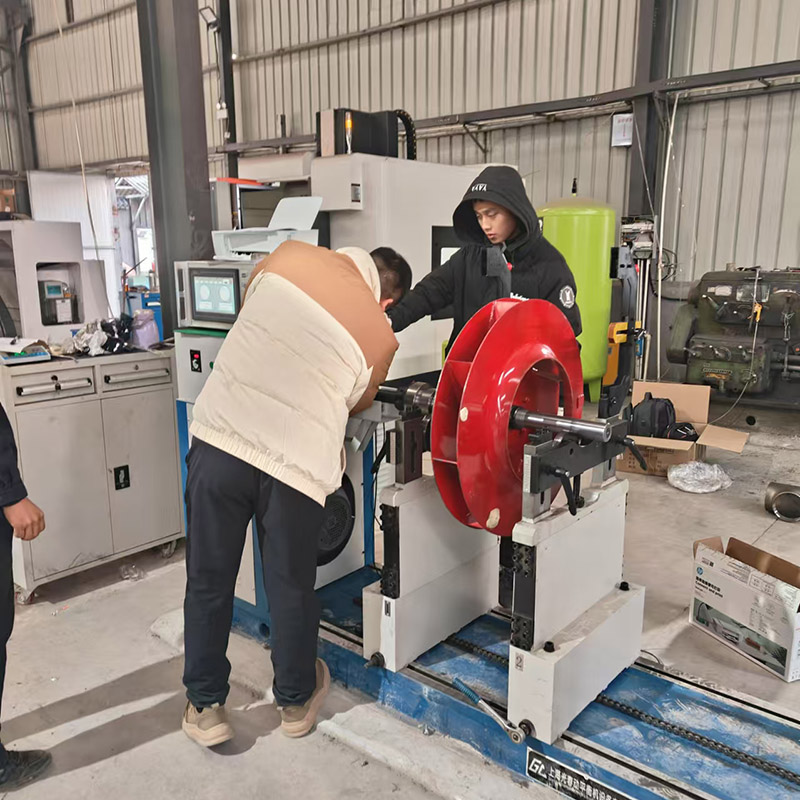

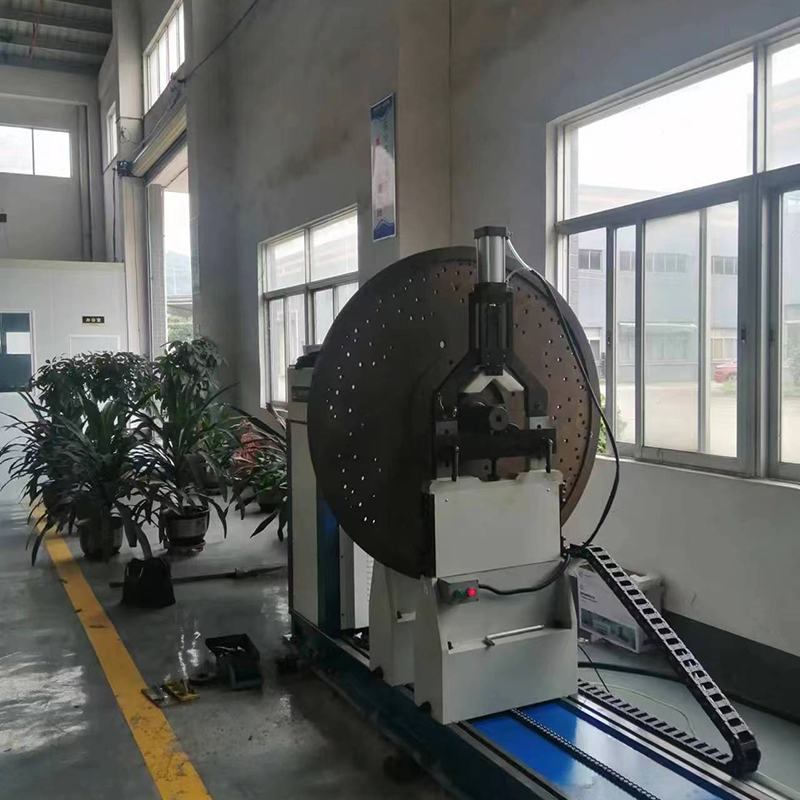

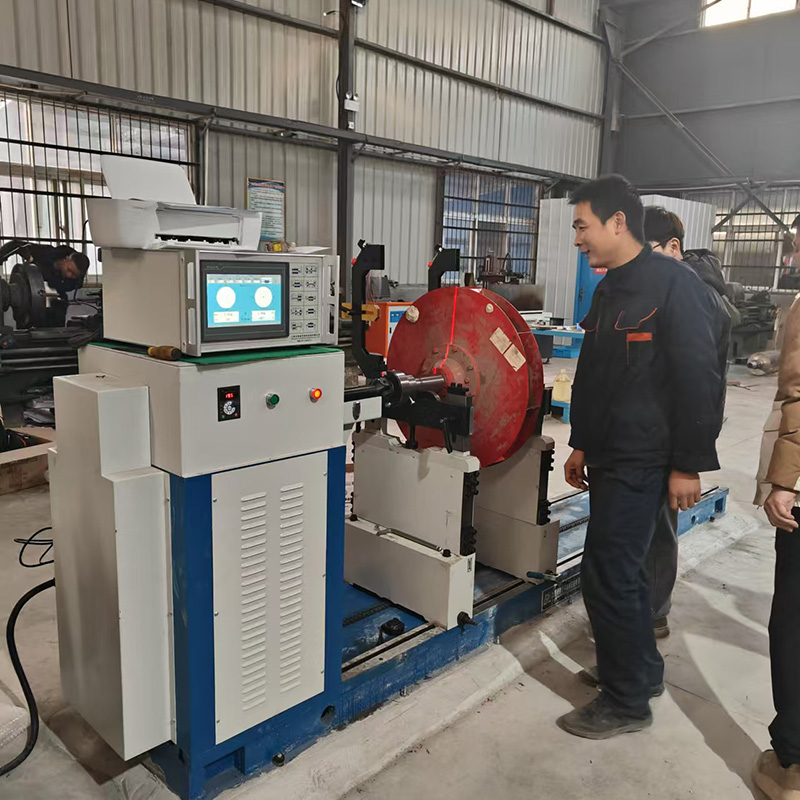

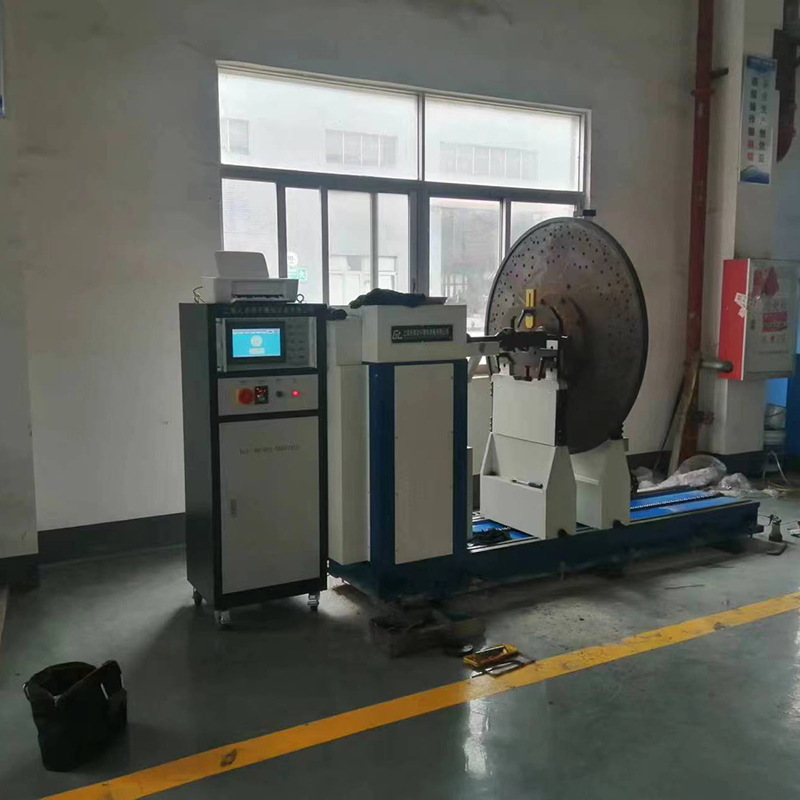

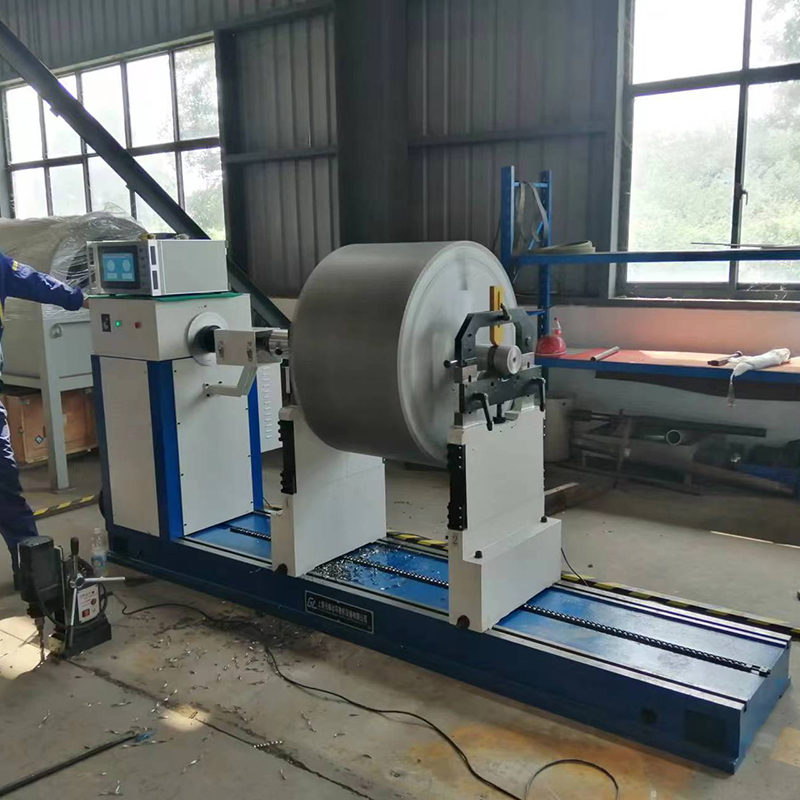

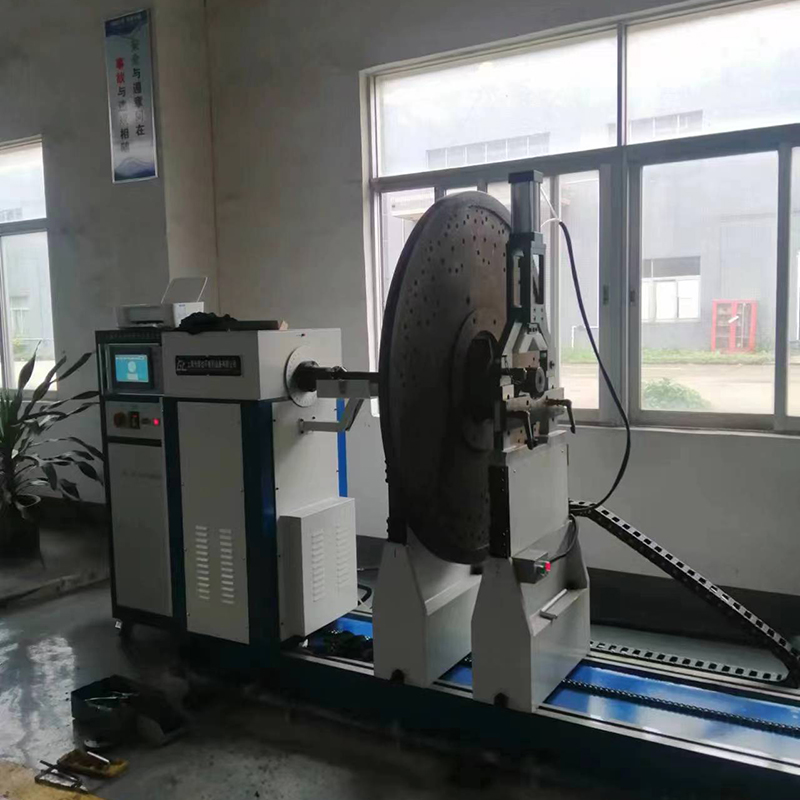

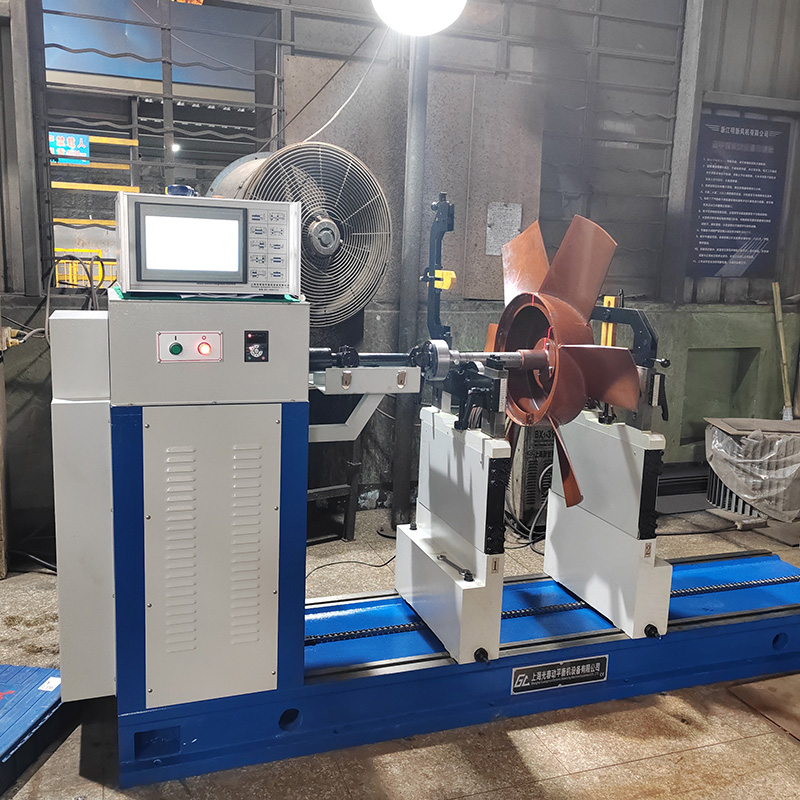

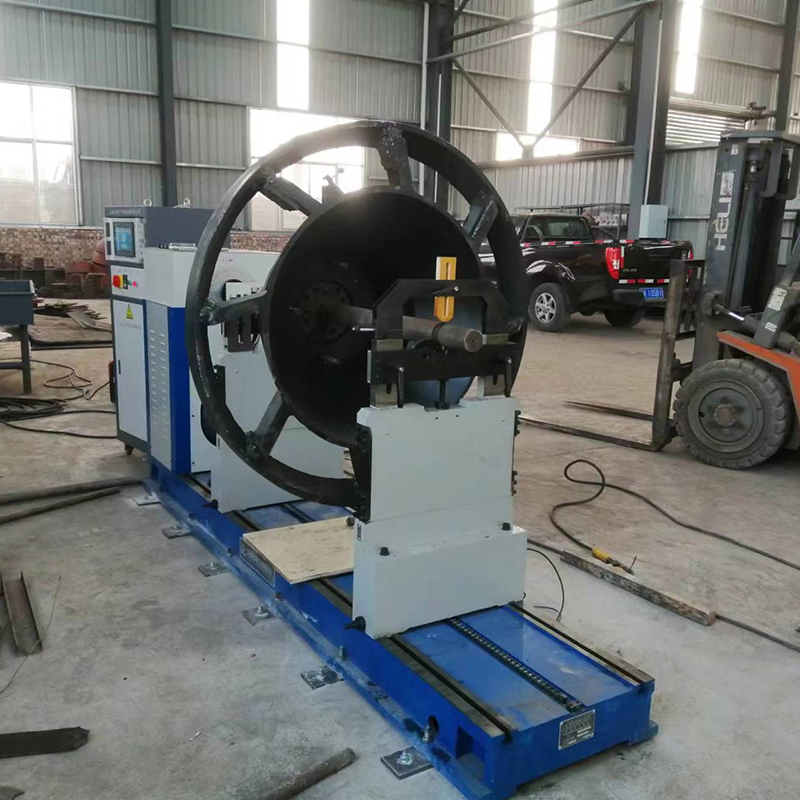

Apply to large and small motor rotor, blower impeller, centrifugal impeller, drying cylinder, and roller balance verification.

This machine adopts universal joint coupling transmission, infinitely variable speed regulation, with high driving power , high precision and convenient operation.

Inquiry
  • Technical Parameter
  • Video
  • Inquiry
Technical Parameter
Specification YYW-1000 YYW-2000 YYW-3000
Max Weight of Workpiece(kg) 1000 2000 3000
Max Diameter of Workpiece(mm) φ1600 φ1800 φ2100
Min Distance Between Two Support Bearings(mm) 100 100 320
Bed Length(mm) 2700 3000 3000
Maximum distance between end face of universal coupling and Center Of right support(mm) 1500 1800 1800
Journal Diameter Range of Workpiece(mm)

φ25-180

Customization

φ25-180

Customization

φ25-180

Customization
Spindle speed(r/min) Variable frequency steplessspeed regulation Variable frequency steplessspeed regulation Variable frequency steplessspeed regulation
Motor Power(kw) 5.5 7.5 11
Torque of Universal Joint Shaft (N.m) 300 300 300
Min Achievable Residual Specific Unbalance(emar) ≤0.5g.mm/kg ≤0.5g.mm/kg ≤0.5g.mm/kg
Unbalance reduction ratio URR (%) ≥95% ≥95% ≥95%
