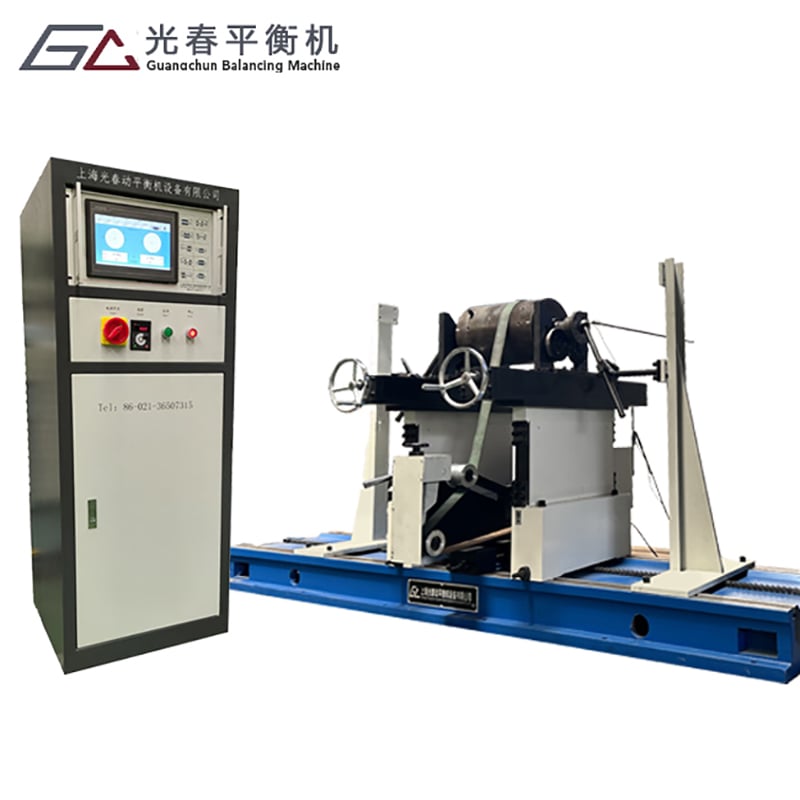

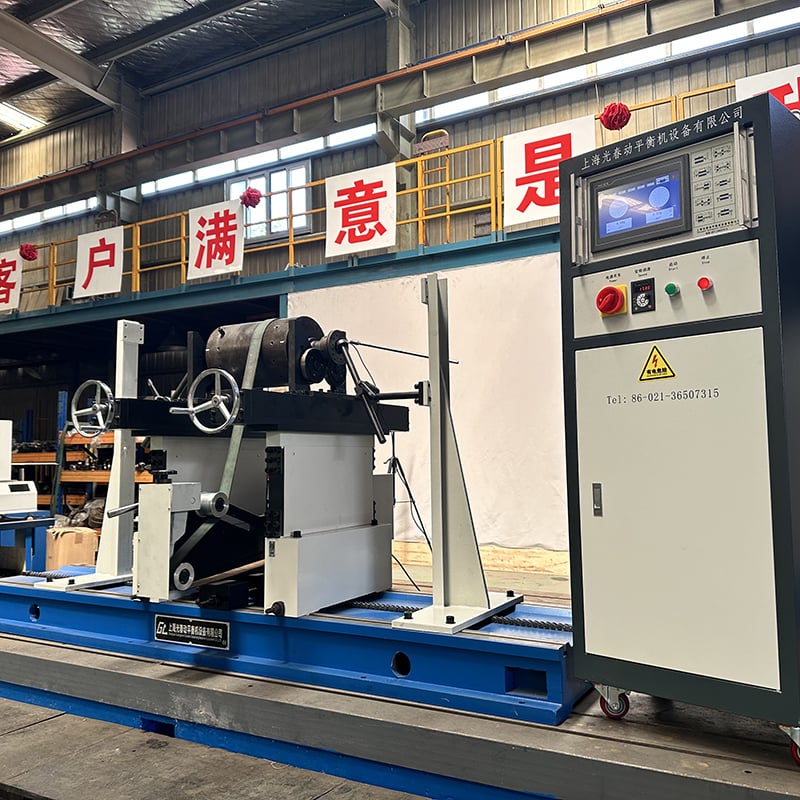

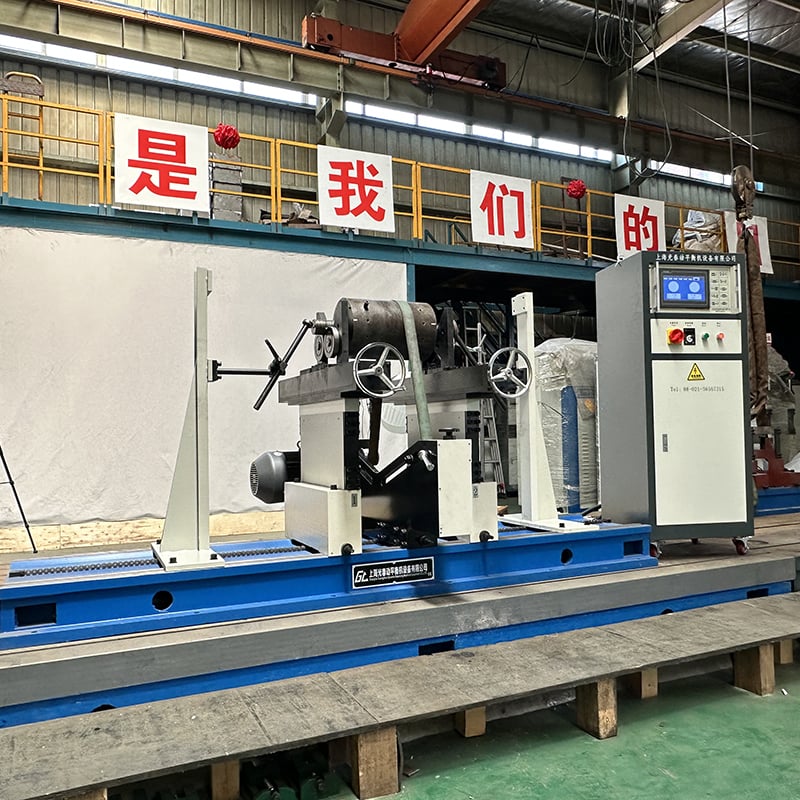

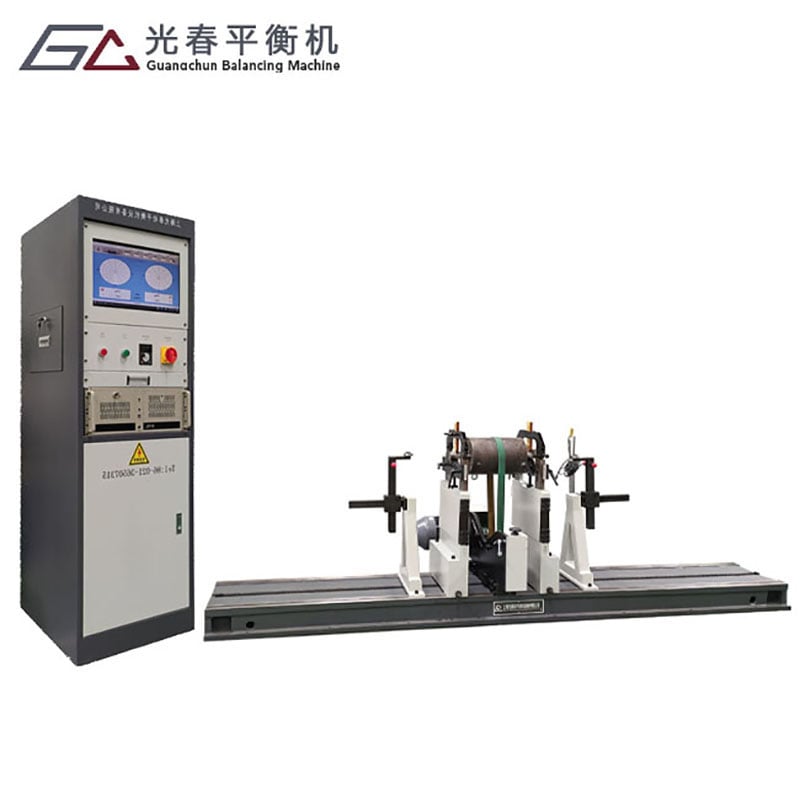

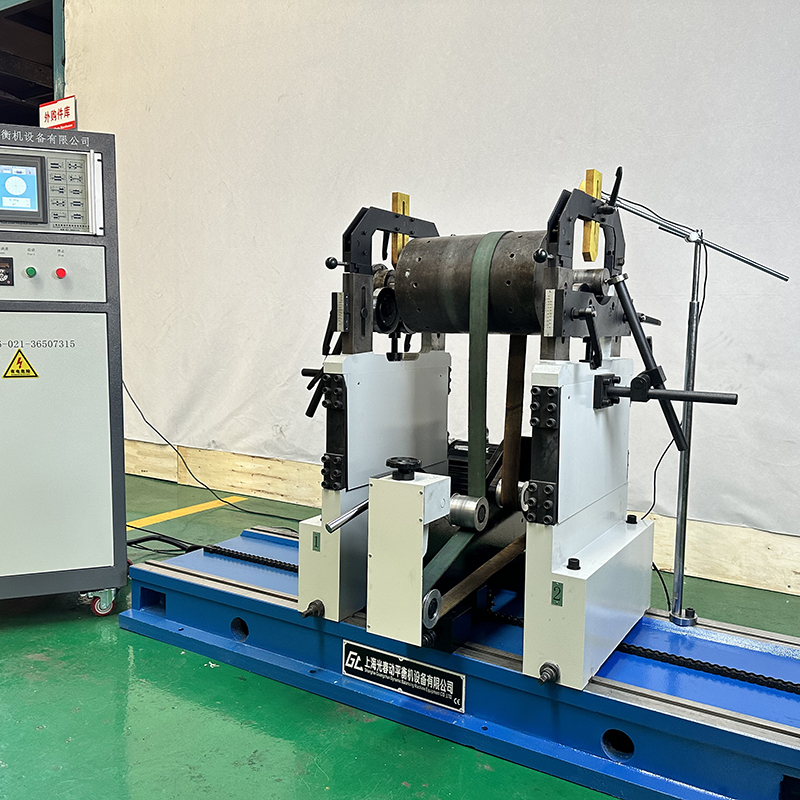

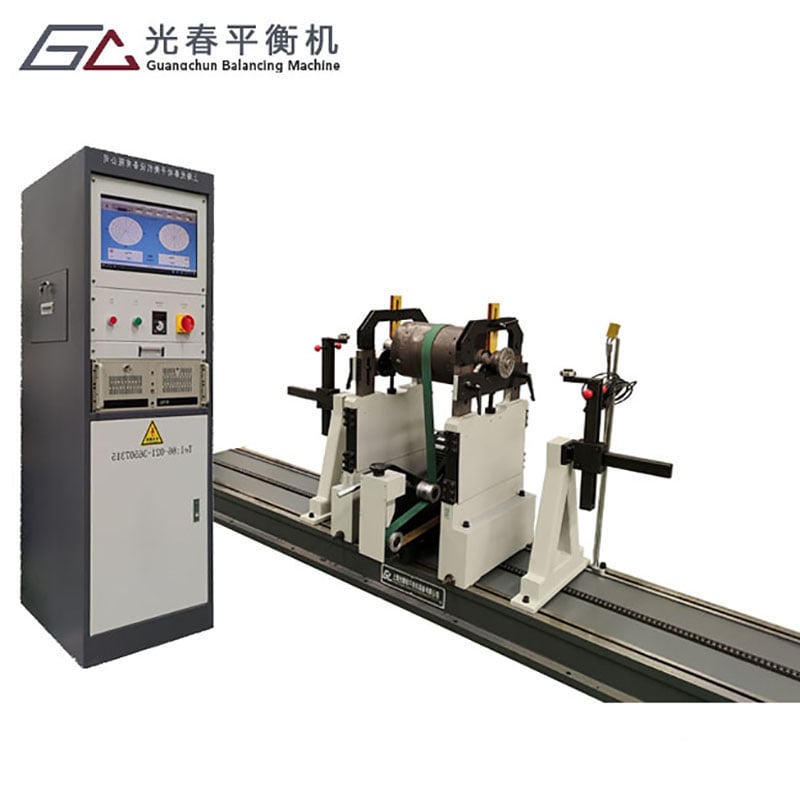

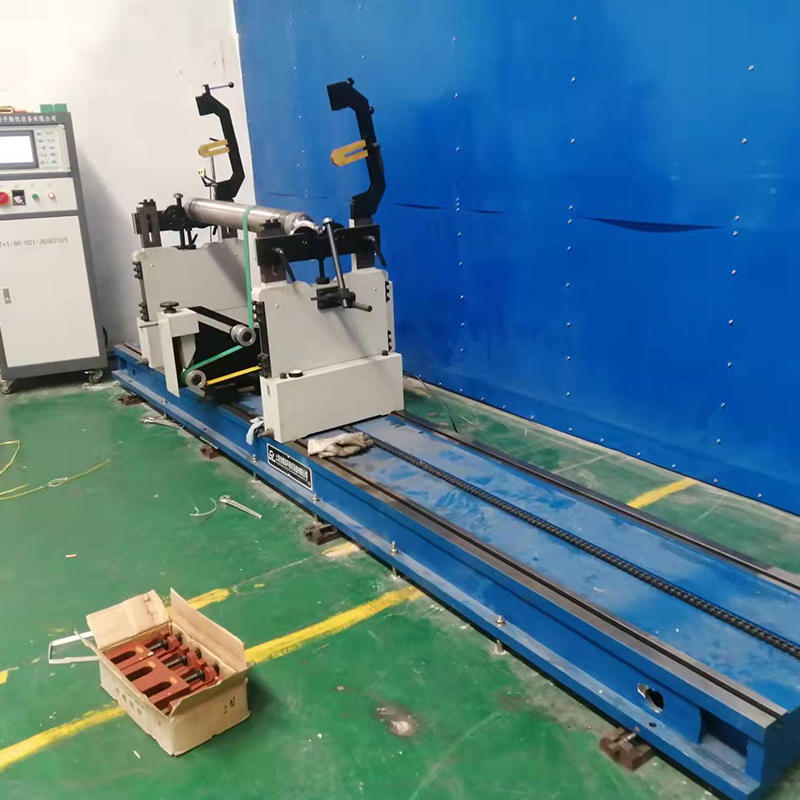

1000/2000/3000Kg belt drive balancing machine

Specification

YYQ-1000

YYQ-2000

YYQ-3000

Max Weight of Workpiece(kg)

1000

2000

3000

Max Diameter of Workpiece(mm)

φ1600

φ1800

φ2100

Distance Range Between Two Support Bearings(mm)

160-1800

160-2500

200-2700

Bed Length(mm)

2000

2700

3000

Journal Diameter Range of Workpiece(mm)

φ25-180

Customization

φ25-180

Customization

φ25-180

Customization

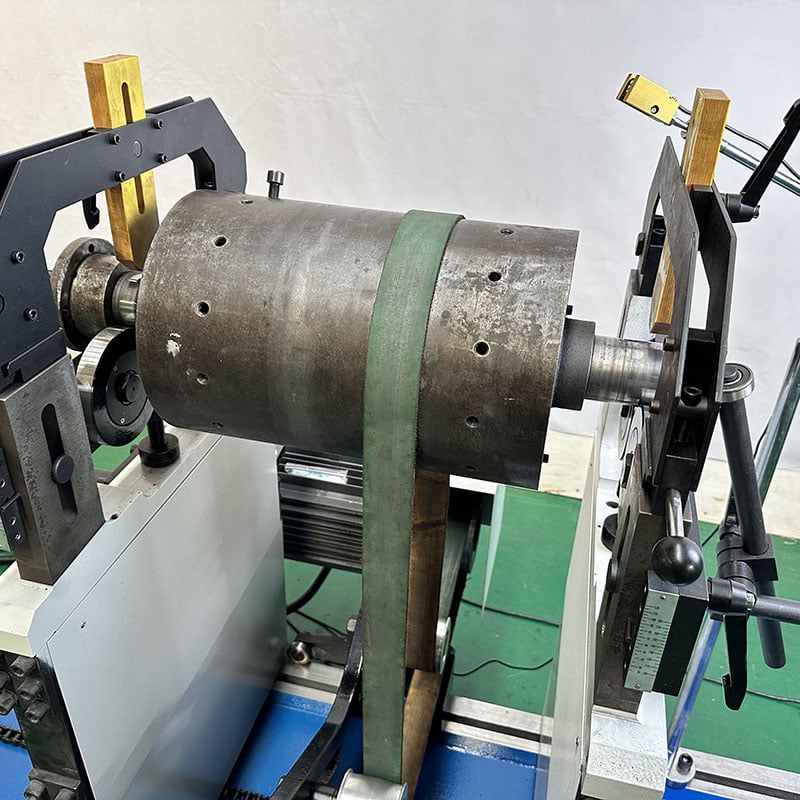

Belt Driving Diameter（mm）

φ40-600

φ40-600

φ40-1000

Speed when the diameter of the workpiece drive is 100mm（r/min）

Variable frequency stepless speed regulation

Variable frequency stepless speed regulation

Variable frequency stepless speed regulation

Motor Power（kw）

4

5.5

7.5

Min Achievable Residual Specific Unbalance (e_mar)

≤0.15g.mm/kg

≤0.15g.mm/kg

≤0.15g.mm/kg

Unbalance reduction ratio URR (%)

≥95%

≥95%

≥95%
