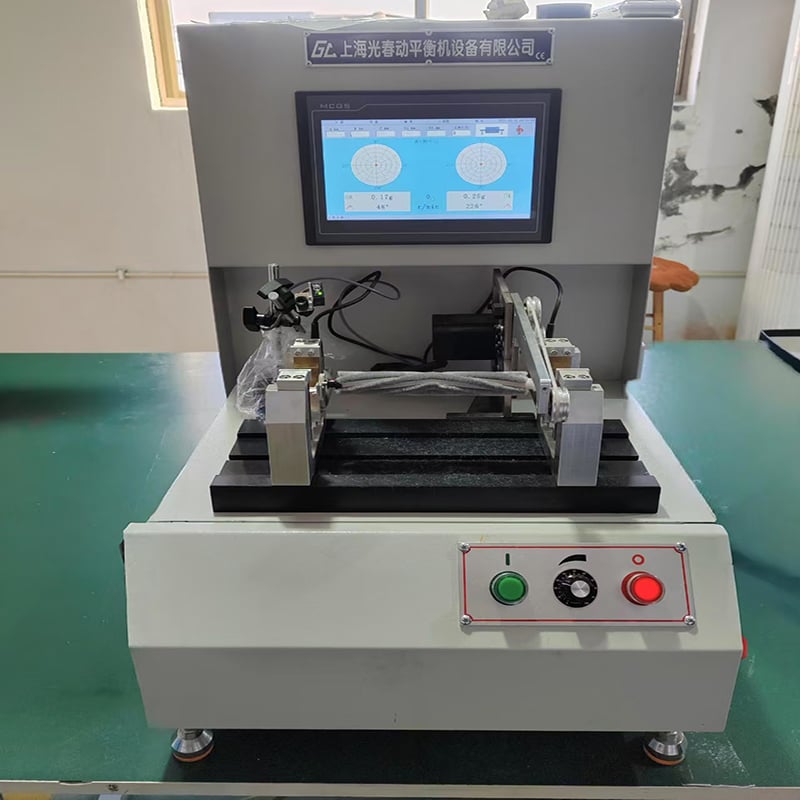

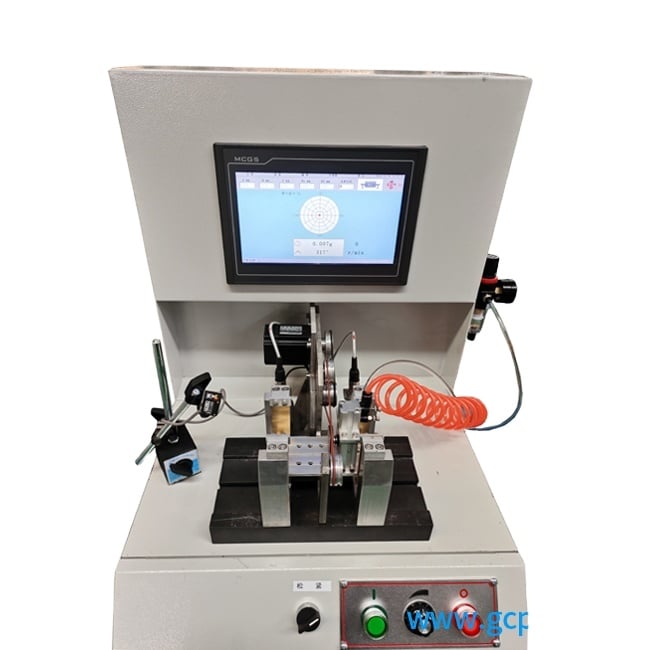

0.3/0.5/1.6Kg soft support dynamic balancing machine
0.3/0.5/1.6Kg soft support dynamic balancing machine
0.3/0.5/1.6Kg soft support dynamic balancing machine
0.3/0.5/1.6Kg soft support dynamic balancing machine
0.3/0.5/1.6Kg soft support dynamic balancing machine
0.3/0.5/1.6Kg soft support dynamic balancing machine
0.3/0.5/1.6Kg soft support dynamic balancing machine
0.3/0.5/1.6Kg soft support dynamic balancing machine

0.3/0.5/1.6Kg soft support dynamic balancing machine

This machine is mainly applied to the dynamic balance test of micro and small motors.

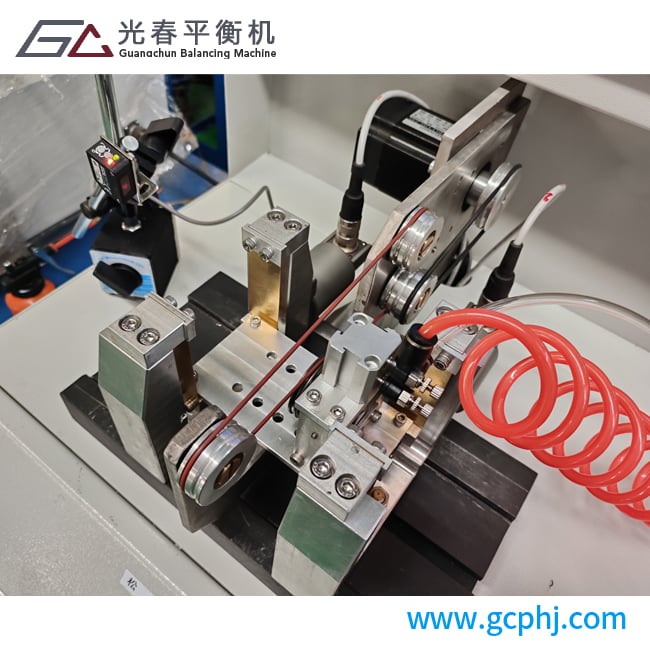

It is developed for the dynamic balancing requirements of tiny rotors, with double driving devices for overall balancing, the pendulum system adopts a soft support structure and is equipped with high-precision sensors to realize the measuring accuracy required for dynamic balancing, and the measuring system is a user-friendly man-machine interface for easy operation.

Inquiry
  • Technical Parameter
  • Inquiry
Technical Parameter
Specification YRQ-0.3/0.5 YRQ-1.6
Max Weight of Workpiece(kg) 0.3/0.5 1.6
Max Diameter of Workpiece(mm) φ120 φ120
Distance Range Between Two Support Bearings(mm) 30-250 30-250
Journal Diameter Range of Workpiece(mm)

φ3-16

customization

φ3-16

customization
Max Diameter of Belt Driving(mm) φ50 φ50
Speed when the diameter of the workpiece drive is 100mm(r/min) DC speed regulation DC speed regulation
Motor Power(kw) 0.125DC 0.125DC
Min Achievable Residual Specific Unbalance(emar)(per-surface) ≤0.15g.mm/kg ≤0.15g.mm/kg
Unbalance reduction ratio URR (%) ≥95% ≥95%
